YX Galvanized Light Hat Profiling Steel Framing Roll Forming Machine Prices

FOB Reference Price:Get Latest Price
$28,000.00 - $32,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YX
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
7.5kw
Certification:
ISO CE SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
16Mpa
Production Capacity:
8-12m/min
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Dahezb
Voltage:
380V/50HZ 3Phase
Dimension(L*W*H):
9.5m*1m*1.3m
Weight:
5.5T
Control system:
PLC(imported Brand)
Color:
Blue
Supply Ability
Supply Ability:
60 Set/Sets per Month
Packaging & Delivery
Packaging Details
NAKED PACKAGE
Port
XIAMEM PORT
Product Description

1.  De-coiler

1) Manual Decoiler

2. Pre- punching Device

1) Punching Type: Hydraulic Punching

2) Punching material: Cr12

3. Roll- forming

1) Forming station: 12 stations

2) Working speed : about 8-15m/min

4. Hydraulic Cutting

1) The cutting blade material is Cr12 with quenched treatment

2) The power of cutting is provided by hydraulic station

5. PLC control system

This system uses PLC to control all working actions. Production quantity and each piece length will be automaticaly measured.

6. Product support frame

They are used to put the final product when product coming out from cutting.

Inspection

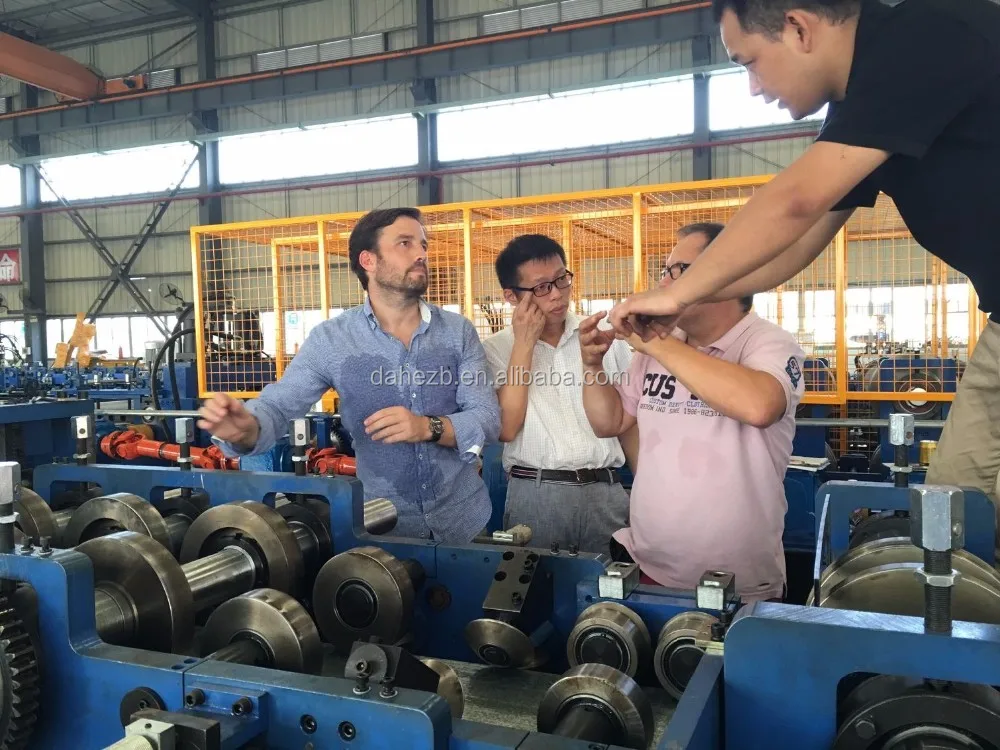

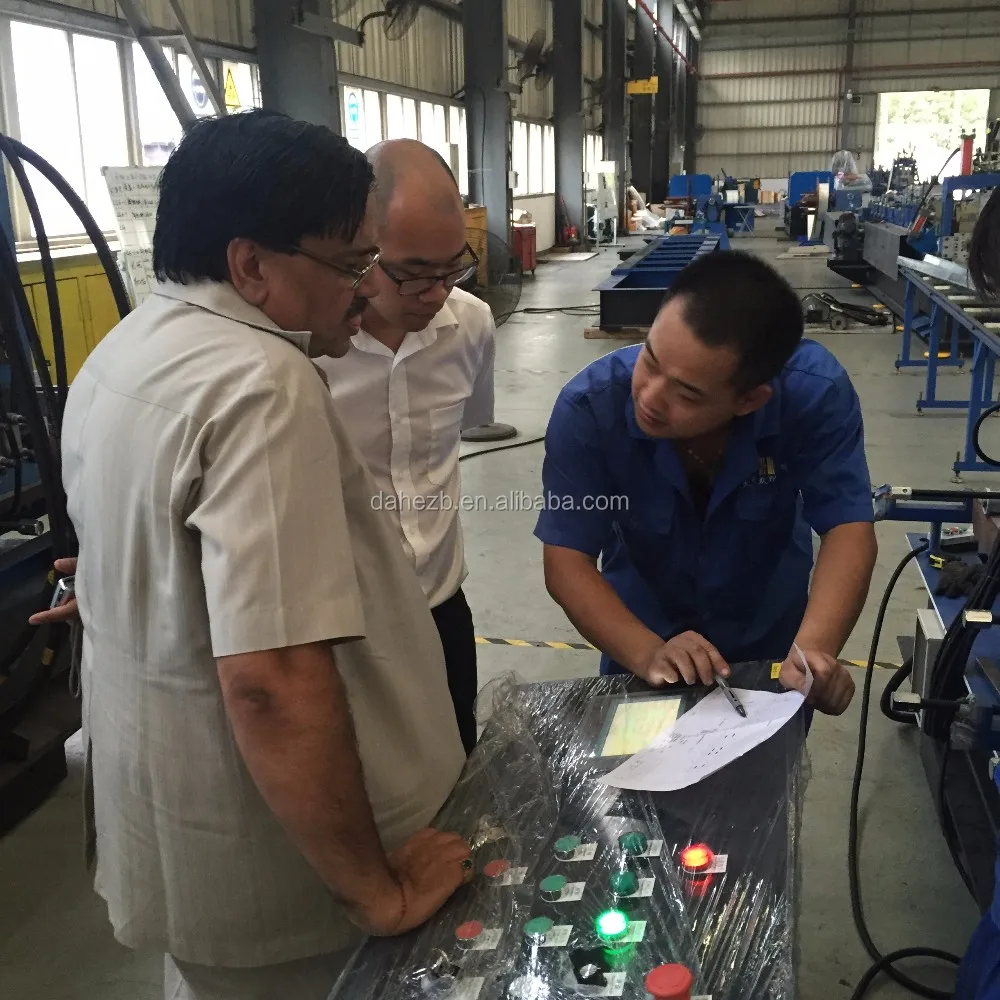

Customer from India


Customer from UAE


Customer from Spain

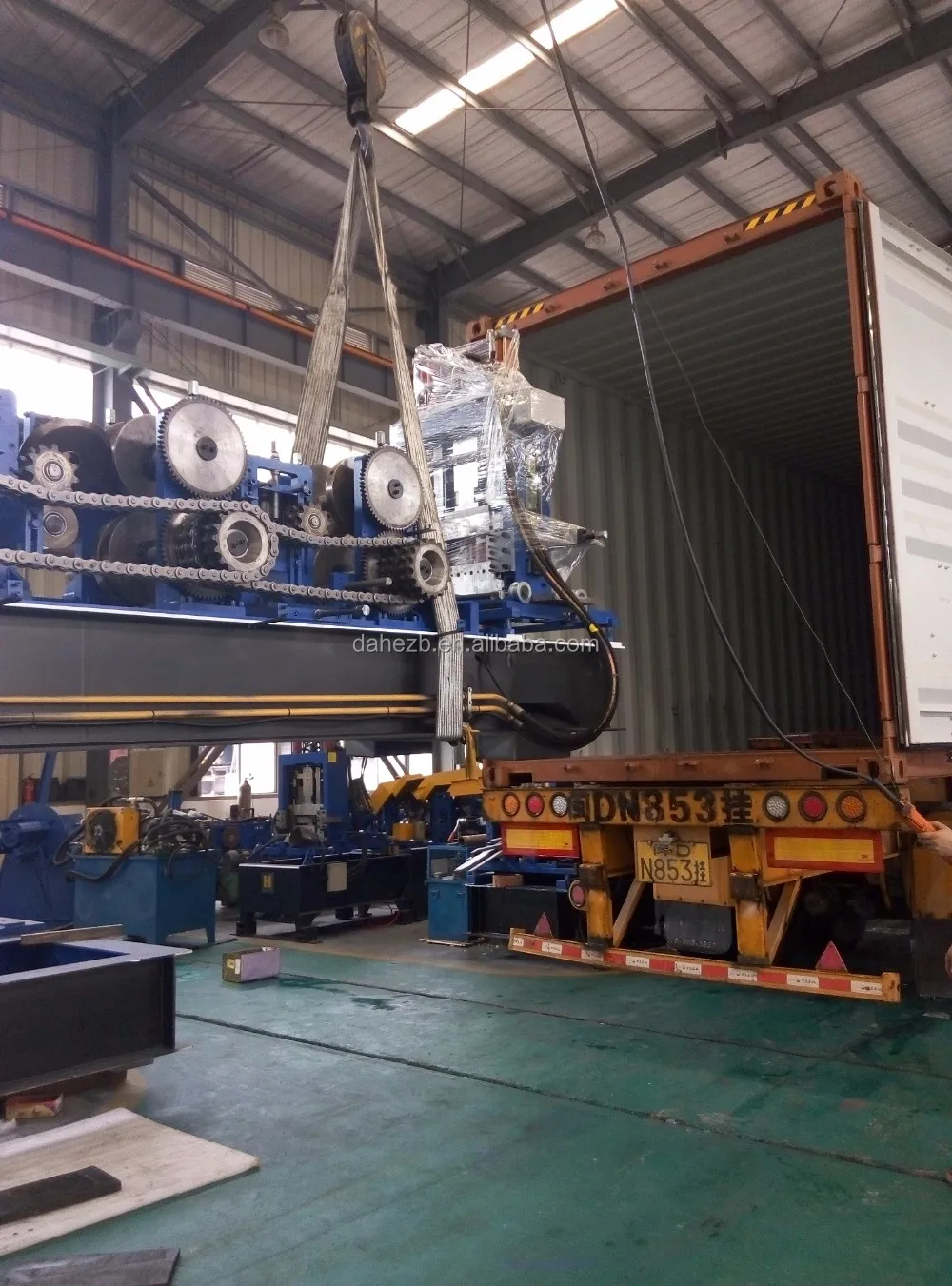

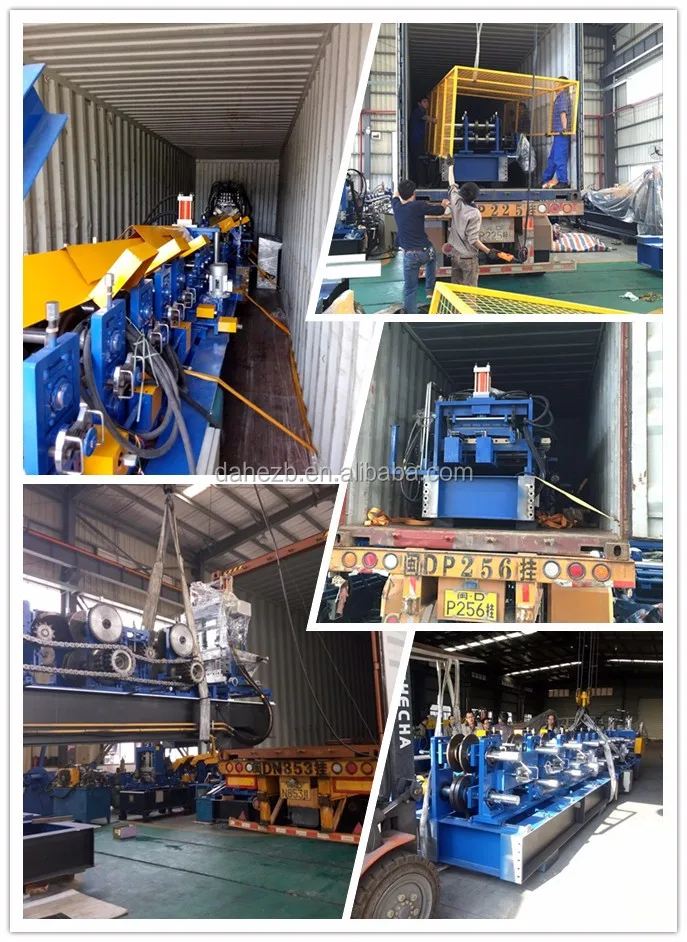

Packing & Delivery



.
