Roof sheet tile Roll forming machine with hydraulic cutting

FOB Reference Price:Get Latest Price
$145,000.00 - $155,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MF-300
Power(W):
22KW
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
35M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Condition:
New
Tile Type:
Steel
Use:
Floor
Place of Origin:
Fujian, China (Mainland)
Brand Name:
DAHE
Voltage:
380V
Dimension(L*W*H):
10.2m*2m*1.96m
Weight:
13.6T
Name:
MF Gauge Steel Framing Machine
Control system:
PLC(imported Brand)
Material:
Cr12
Color:
Customers Requirement
Usage:
Steel Construction
Thickness:
0.8-2.5mm
PLC:
Panasonic Brand
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Packed
Port
XIAMEN
Picture Example:
package-img
package-img
Video Description
Product Description



light gauge steel frame roll forming machine


Abstract:


MF series is a kind of intelligent light steel villa building keel device, which can be independently developed and produced by dahe zhongbang intelligent technology. It can realize CNC machining of various parts such as walls, floors and even stairs. The operation procedure can directly import design data or directly input required parameters. All you need to do for model changes is enter the changed canonical size on the console, and then click change type. The entire device then moves to the desired location completely automatically, without human intervention. High flexibility and intelligent production is a major feature of MF. Under the background of the new era, light steel structure building in the high-rise, heavy and light combination of various application fields is developing rapidly, highly flexible intelligent light steel processing equipment is your choice in the future.Compact and reasonable machine layout, high speed, high precision, high rigidity to provide users with high efficiency, high reliability of C/U steel forming equipment. Molding machine can be replaced within the scope of specifications, customers only need to request specifications, we will design and provide the corresponding blade tools.


Flow chart

Decoiler-- Feeding and leveling--Pre-punching -- Rolling forming device-- Hydraulic cutting system-Production support frame-PLC system



Specifications


Purlin:

Width in Any size within 140-300,


Height is 50,

Lip in Any size within 10-20.

Thickness in Any size within 1.0-2.5


Machine Dtails:

1) Name: CU full-automatic gauge steel machine

2) Configuration:decoiler, feeding and leveling, punching, cutting system , rolling forming device and production support stable.

PLC ( Panasonic),travel switch(Autonics)

3) Driver Type:three-phase asynchronous motor.

4) Working speed:12-18m/min (depend on the punching hole number)

5) Suitable material:Q235 and G550

6) Rollers:Cr12

Product information

* MF steel machine qualified electrical inspection and marking electrical switch logo

* The certificate of MF steel machine

* Qualified hydraulic personnel to test and mark the hydraulic switch logo

* MF steel machine setting table


* Quality check list of decoiler


* A list of the parts of the kit


* Electrical field installation checklist


* Electrical circuit diagram

* Hydraulic circuit diagram

* Electrical circuit diagram of the decoiler

* Spare parts description

Disclaimer: Due to the specifications of follow-up product development are different, the change of manual topic will not notice.

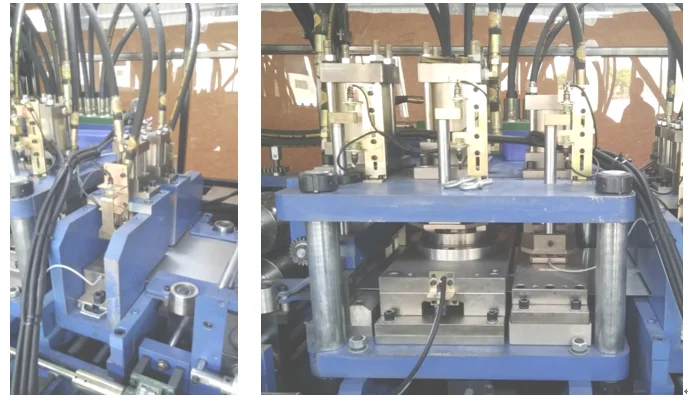

Pre-Punching System



PLC control punching quantity , Longitudinal position and transversal position

Punching type: Hydraulic punching



 Rolling forming system

16 groups rollers. Main rollers of this line are made by Cr12 (better material than Gcr15) mould steel material, all treated by full CNC precision machines, surface is quench treated, plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool, therefore the roller has very good rigidity, the sheet made by it has better quality and precision profile.

Hydraulic cutting system


Cutting system is composed of body frame, Cutter mold, motionlink and hydraulic system. Body frame adopts high quality steel plate and welded it together. Cutting uses die-cut, the cutting blade material is Cr12 with quenched treatment. With 2 Guide Pillar for shearing support, which make the shearing more stable and longer life for cutter. And hydraulic system provide power for cutting.

  Size of PLC Control Board(700mm(L)x1000mm(H)x300mm(W)
  Encoder : OMRON


Our company&factory

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
