Metal Light Gauge Steel Frame Roll Forming Machine for villa c channel roll former c keel making machine

FOB Reference Price:Get Latest Price
$105,000.00 - $115,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LG
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
35M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
22KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China
Brand Name:
DaHe
Voltage:
380V/3 phases/50HZ
Dimension(L*W*H):
5.4m*0.98m*1.5m
Weight:
3.5T
Product name:
Light Gauge Steel Roll Foming Machine
Brand name:
DAHE
Roller material:
GCr15
Control system:
PLC(imported Brand)
Punching:
pre-punching
Usage:
Light Gauge Steel Walls Roof
Color:
Customers' Requires
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN
Picture Example:
package-img
package-img
Video Description
Product Description

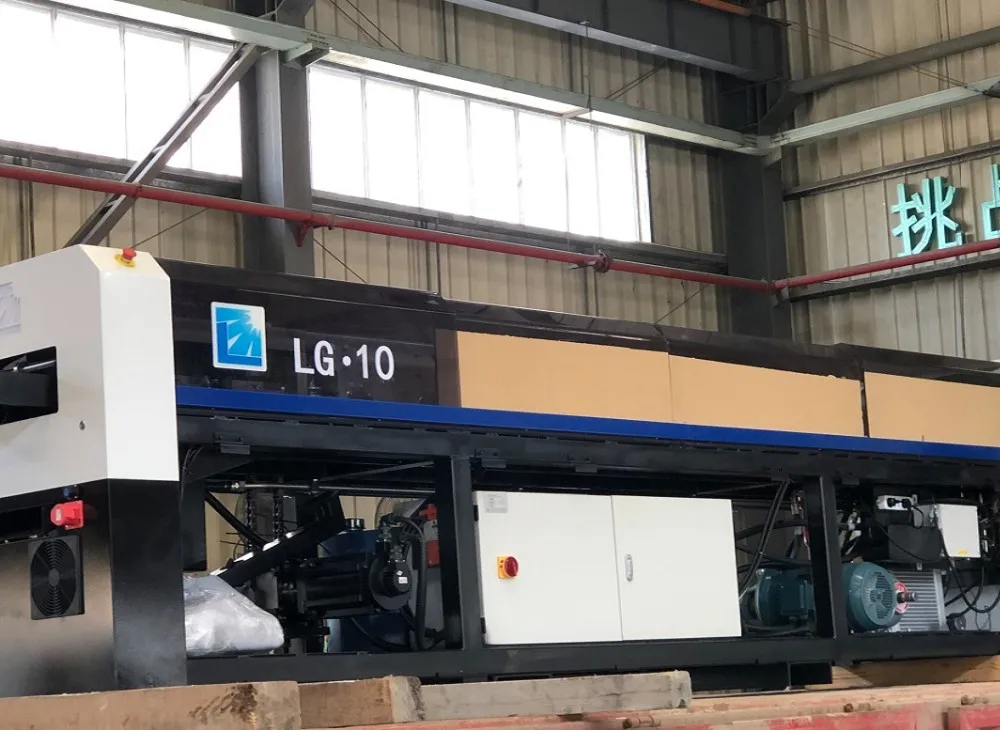

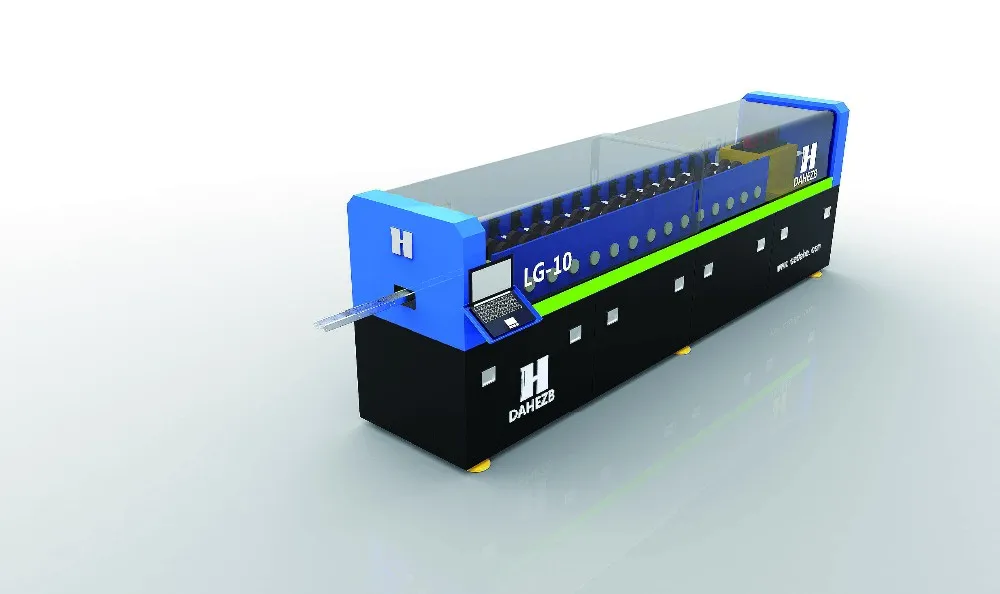

LG Light Gauge Steel Frame  Roll Forming Machine


Abstract:

The products manufactured by this machine are easy to install and can be used in different colors to make them a comprehensive and individual design. They can be attached to equipment specifically designed for keels and can be disassembled separately. Our company has cooperated with Vertex ,and launched the immaculate Light gauge steel design and production line which combined the most advanced light gauge steel structure design system and purlin interchanging technology.

Developed in cooperation with Vertex, the advanced light steel keel design system and the infinite replacement technology are combined to create a light steel design production system.

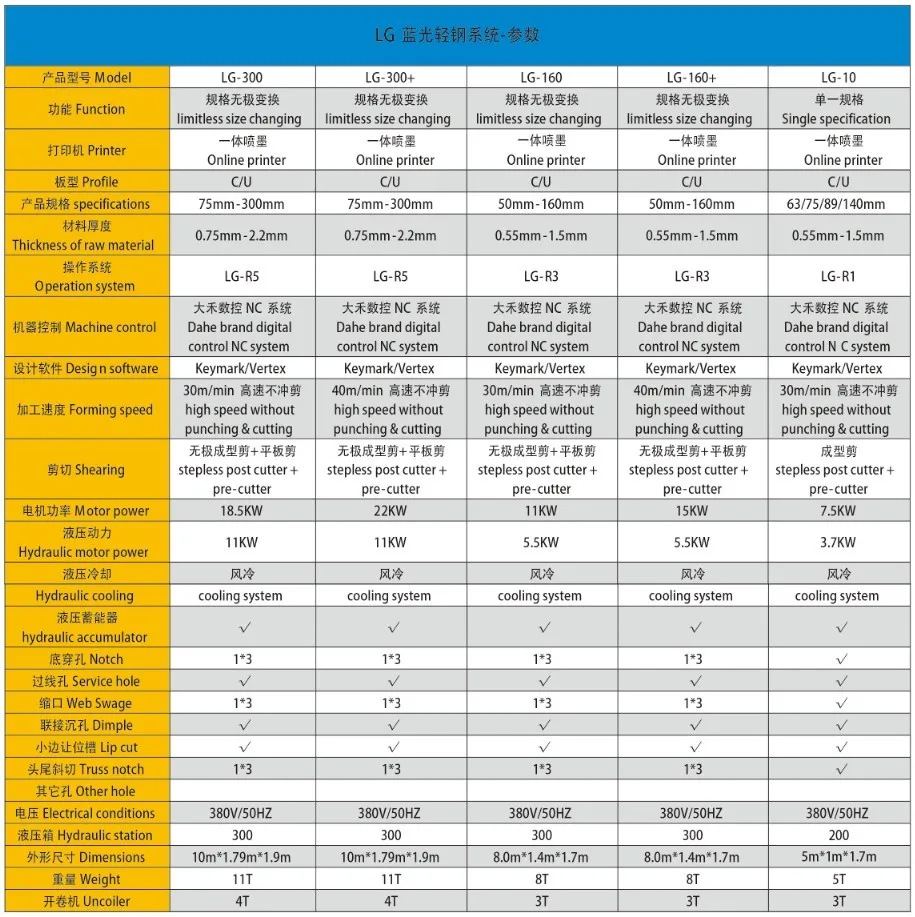

LG-300 75mm*30mm*10mm~300mm*80mm*20mm Any change/any size


LG-200 70mm*25mm*10mm~200mm*60mm*20mm Any change/any size


Flow chart:


De-coiler→ Leveling Device→ Punching Device→ Roll Forming System→Cutting Device →Out-let table


Content:


 LG light gauge steel machine qualified electrical inspection and marking electrical switch logo
 The certificate of LG light gauge steel machine
 Qualified hydraulic personnel to test and mark the hydraulic switch logo
 LG light gauge steel machine setting table
 Quality check list of decoiler
 A list of the parts of the kit
 Electrical field installation checklist
 Electrical circuit diagram
 Hydraulic circuit diagram
 Electrical circuit diagram of the decoiler
 Spare parts description

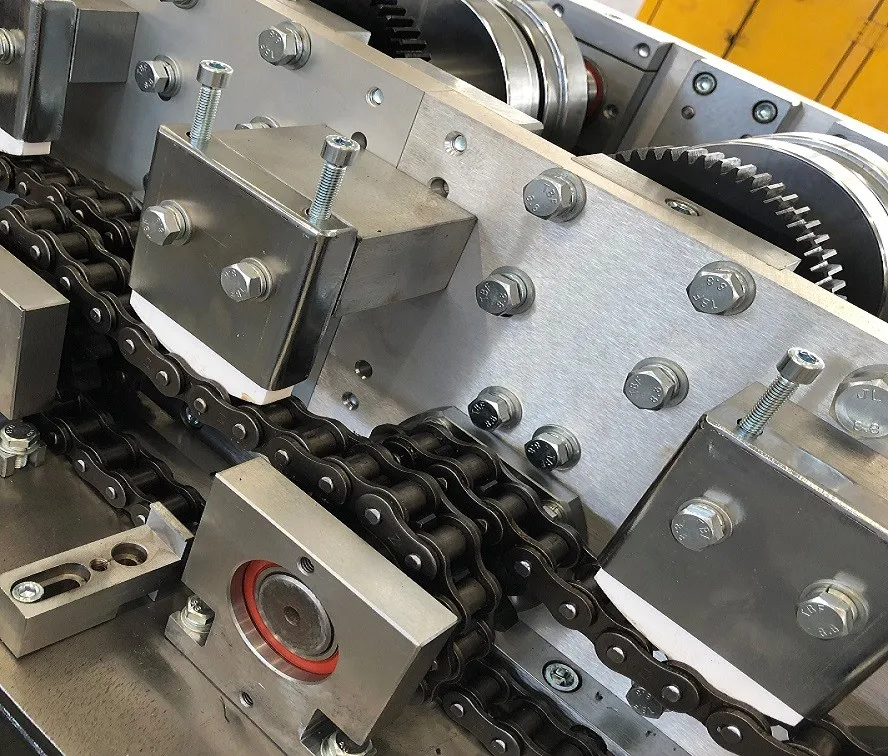

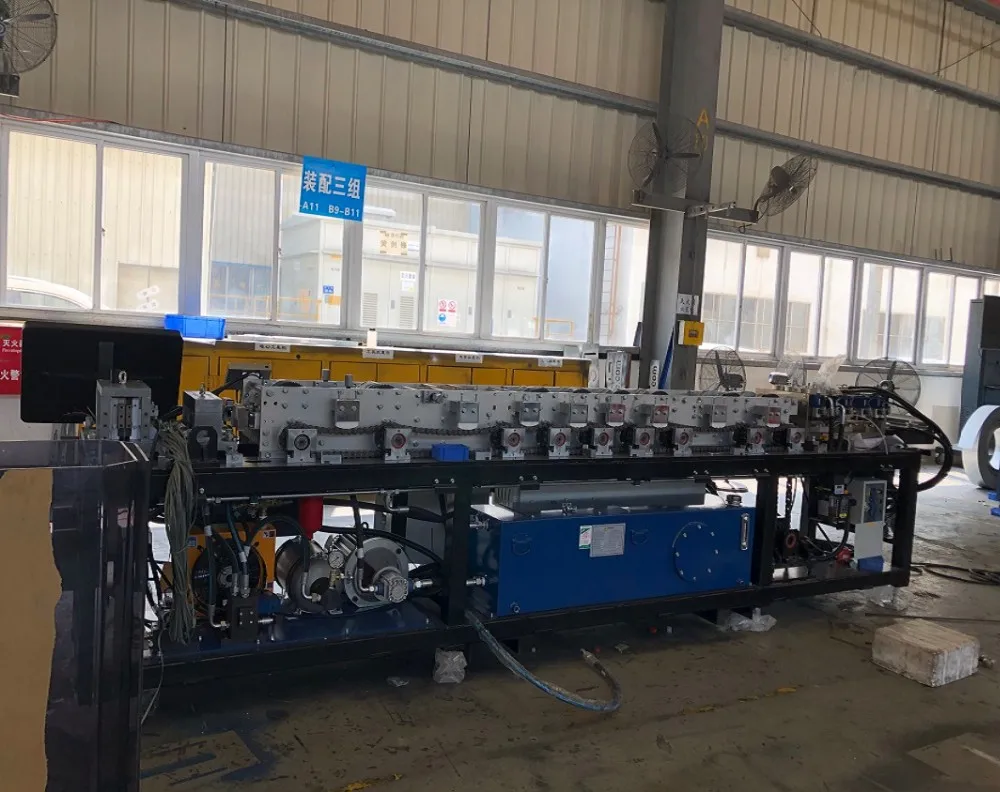

Main Roll forming system
Roller Station
13 Steps
Roller material
GCr15, Heated and Quenched, polishing, Galvanized
Forming Speed
0-35m/min(Non-Stop)
Shaft material
40Cr
Decoiler (Automatic)
Bearing
3T
Others
Spindle double holding brake/
Self-driven feeding
Servo/Hydraulic System
Hydraulic System Working Pressure
18Mpa
Main pump motor power
7.5KW380V             1Set
Voltage Standard
380V/3 Phases/50HZ
Control System
PLC System
Panasonic, Japan
Length Controller
Omron, Japan
Support table
Length
6M(Fixed Storage Table)



Our company

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
