2019 Hot Sale Roof Sheet Glazed Tile Roll Forming Machine Light Gauge Steel Roll Former MF300

FOB Reference Price:Get Latest Price
$145,000.00 - $155,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MF
Power(W):
22KW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
35M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Condition:
New
Tile Type:
Steel
Use:
Floor
Place of Origin:
Fujian, China
Brand Name:
DAHE
Voltage:
380V
Dimension(L*W*H):
10.2m*2m*1.96m
Weight:
13.6T
Name:
MF Gauge Steel Framing Machine
Control system:
PLC(imported Brand)
Material:
Cr12
Color:
Customers Requirement
Usage:
Steel Construction
Thickness:
1.0-2.5mm
PLC:
Panasonic Brand
Roller material:
Cr12 Steel Quenched
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Packaging & Delivery
Packaging Details
Nude Packed
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

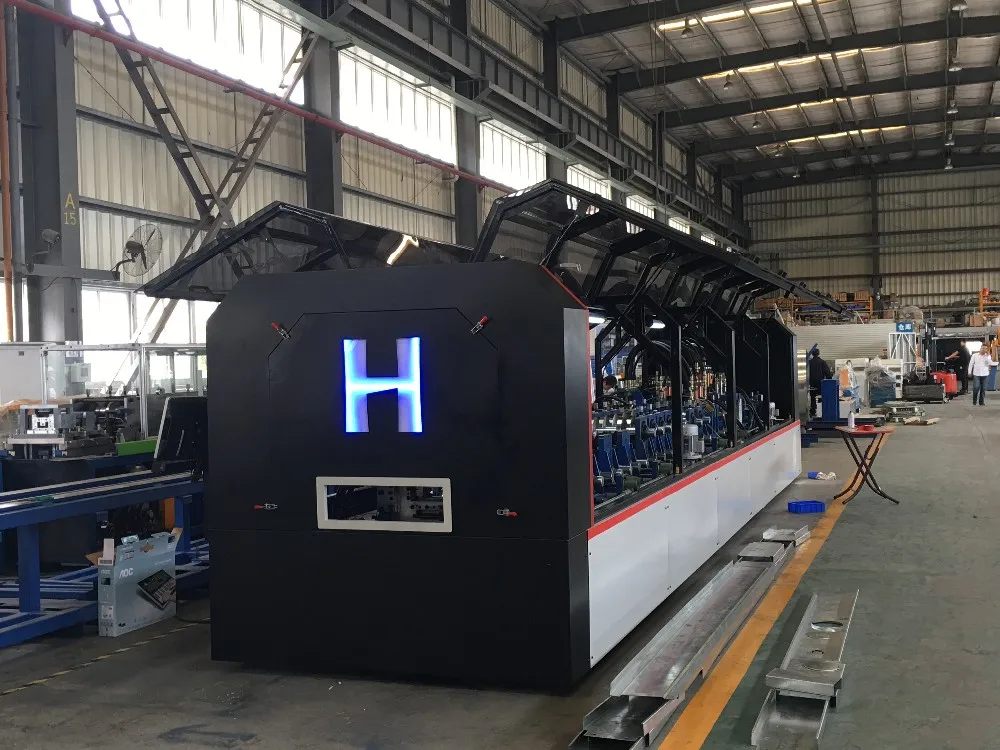

light gauge steel roll forming machine MF300


Abstract:


MF series is a kind of intelligent light steel villa building keel equipment which can realize automatic transformation independently developed and produced by dahe zhongbang intelligent technology. It can realize CNC machining of wall, floor and even stairs and other components. The operation process can directly import design data and input required parameters. For model change, you only need to input the changed specification size on the console and then click "change". Then the whole equipment will move to the desired position automatically without manual intervention. A high degree of flexibility and intelligent production is a major feature of MF. Under the background of the new era, light steel building is developing rapidly towards high-rise, light weight combined with other application fields. A highly flexible intelligent light steel processing equipment is your choice for the future.

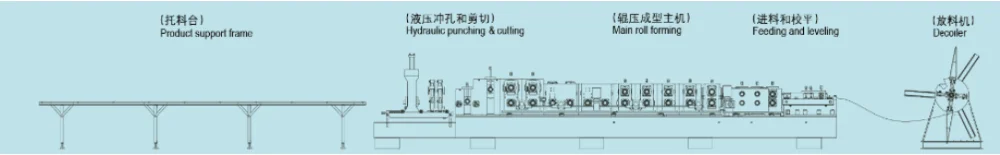

Flow chart

Decoiler-- Feeding and leveling--Pre-punching -- Rolling forming device-- Hydraulic cutting system-Production support frame-PLC system



Specifications

Type:
Steel frame&purlin machine
Condition:
New
Work Pressure:
16Mpa
Production capacity:
12--18m/min
Shaft material:
40cr
Brand name:
DAHE
Roller material:
Cr12 MOV
Control system:
PLC(Panasonic)
After-sales service provided:
Engineers available to service
Cutting blade material:
Cr12
Feature:
Automation
Color:
Customers' Requires
Name:
Purlin roll forming machine
Power:
22KW
Usage:
Construction Building Material

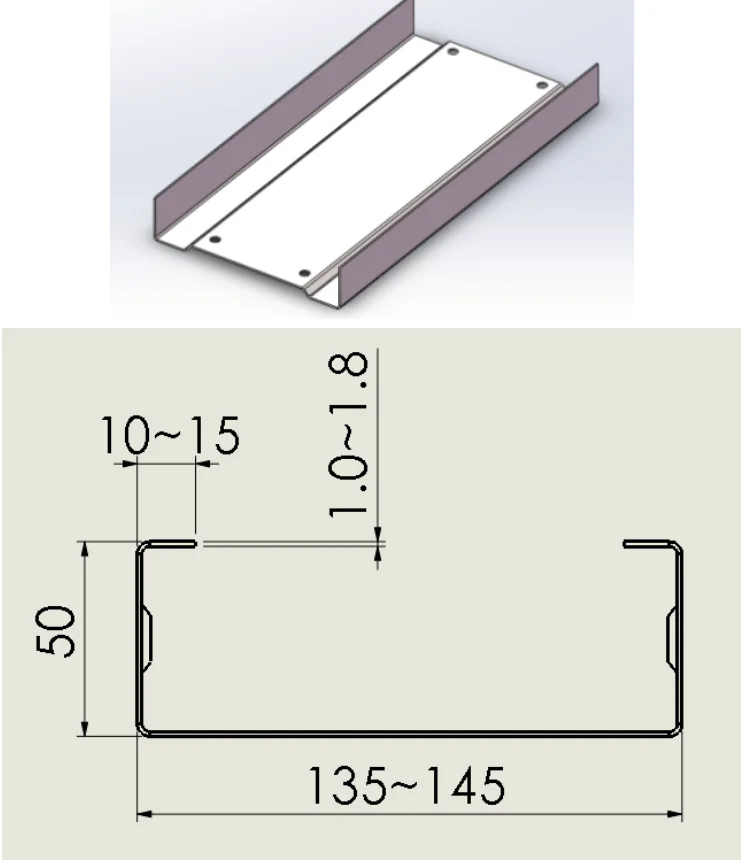

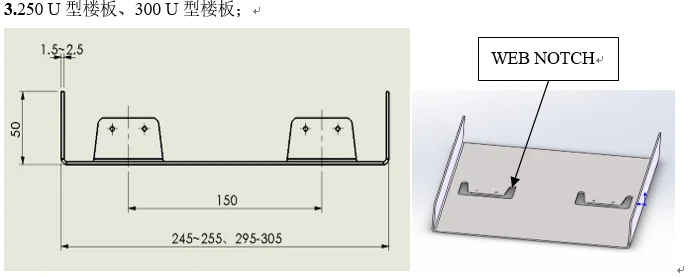

Purlin Specifications:
Width in Any size within 140-300,
Height is 50,
Lip in Any size within 10-20.
Thickness in Any size within 1.0-2.5mm
Suitable material:
Q235 and G550
Configuration:
decoiler, feeding and leveling, punching, cutting system , rolling forming device and production support stable

Product information

* MF steel machine qualified electrical inspection and marking electrical switch logo

* The certificate of MF steel machine

* Qualified hydraulic personnel to test and mark the hydraulic switch logo

* MF steel machine setting table


* Quality check list of decoiler


* A list of the parts of the kit


* Electrical field installation checklist


* Electrical circuit diagram

* Hydraulic circuit diagram

* Electrical circuit diagram of the decoiler

* Spare parts description

Disclaimer: Due to the specifications of follow-up product development are different, the change of manual topic will not notice.



  Size of PLC Control Board(700mm(L)x1000mm(H)x300mm(W)
  Encoder : OMRON


Our company&factory

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.

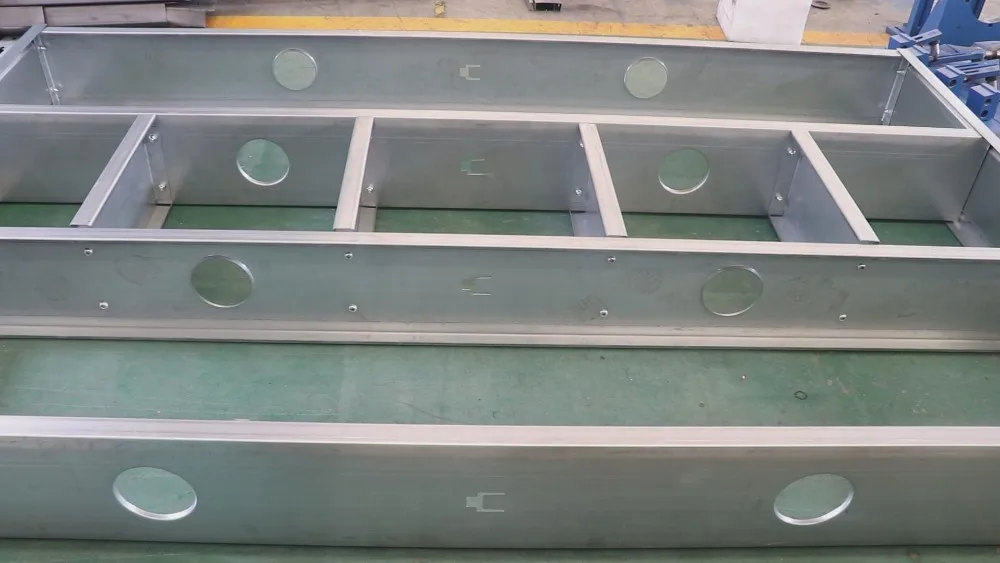

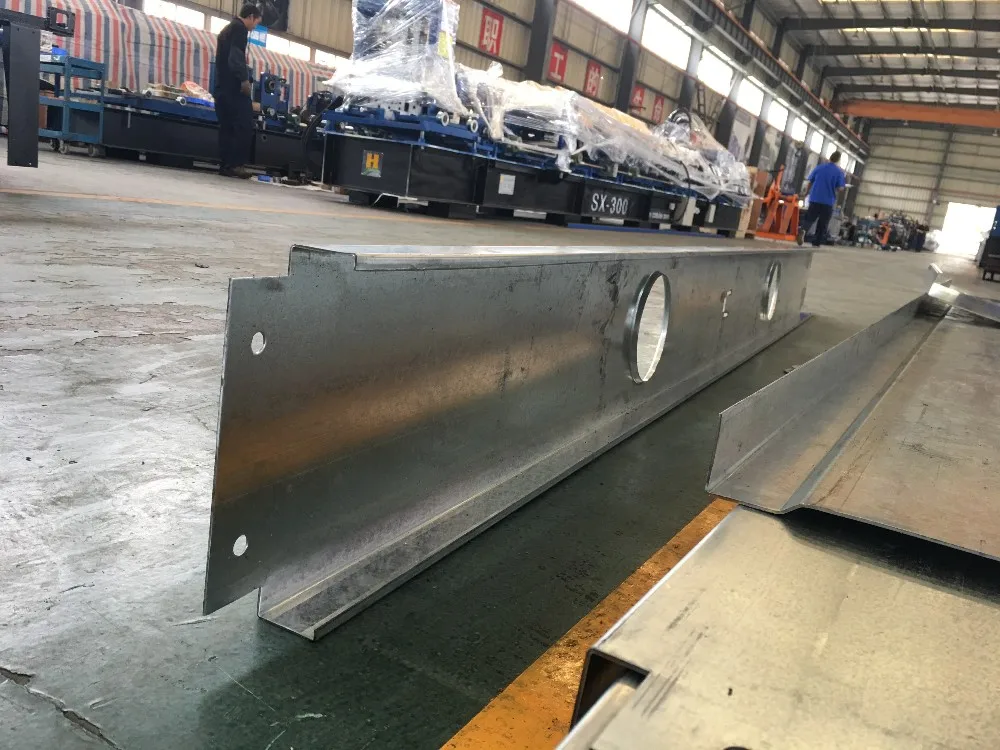

Our customer show
Packing&Delivery
Company exhibition
Contact us

If you have any questions ,welcome to fill in the following forms, we will get in touch with you as soon.


Company Adddress: Room 1203, No.339, Software Park, Chengyi Street, Jimei District, Xiamen City Fujian,China. Zip code: 361000

Factory
Adddress:
  Workshop A2, Xiagong Machinery Park, No.585, Tieshan Road, Jimei District, Xiamen City,Fujian,China. Zip code: 361000

Tel:  +86 592 3602309

Fax:  +86 592 3501561

Skype:  dahezb

WhatsApp/Phone/Wechat:  +86 13559200628
