Metal C Purlin Roll Forming Machine Top Level Stud C Channel Roll Forming Machine

FOB Reference Price:Get Latest Price
$32,000.00 - $39,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LS75-300
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
35M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
18.5KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China
Brand Name:
DaHe
Voltage:
380V/3 phases/50HZ
Dimension(L*W*H):
9.00m*1.71m*1.80m
Weight:
8.5T
Product name:
Purlin Roll Forming Machine
Brand name:
DAHE
Shaft material:
40Cr
Cutting blade material:
Cr12Mov Mold Steel
Color:
Customers' Requires
Thickness:
1.0-3.0mm
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN
Picture Example:
package-img
package-img
Video Description
Product Description


Galvaniazed C purlin Roll Forming Machine


Abstract:

Xiamen Dahe Intelligent Technology Co., Ltd. is a company specializing in R&D and production of c-shaped steel equipment. It has advanced stepless manufacturing technology of CZ steel equipment, perfect production line configuration, and professionally complete stepless transformation and stepless cutting equipment.

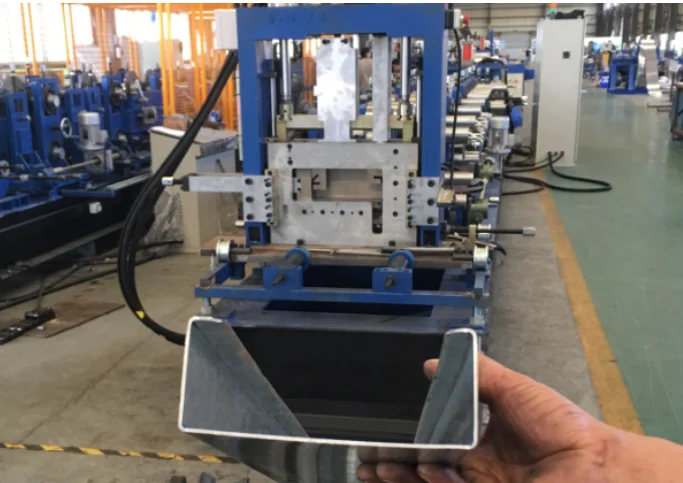

We found that although the performance of the non-pole equipment is superior, but using the traditional shear method, it may be difficult to give play to the superior characteristics of the non-pole equipment arbitrary switching, so we developed the non-pole cutting tool. If the CZ non-pole equipment is equipped with the old flat plate shear, it will appear running deviation, punching displacement, swelling and other defects. If the traditional cutting tool is used for cutting, in order to adapt to different specifications, countless spare blades are needed, which takes up the production site and takes a lot of time to change the knife, not to give play to the advantages of non-polar type change. Non-polar cutting tool system, no need to change the tool, just rotate the adjusting rod, a few minutes can be the accuracy of the unit millimeter, any change its width and height, you can shear C type can also shear Z type, give full play to the advantages of non-polar, is the collocation of CZ non-polar conversion equipment.

Flow chart:


Decoiler→ Feeding and leveling →Pre-cutting →Roll forming→ Post cutting→Hydraulic cutting→ product support frame

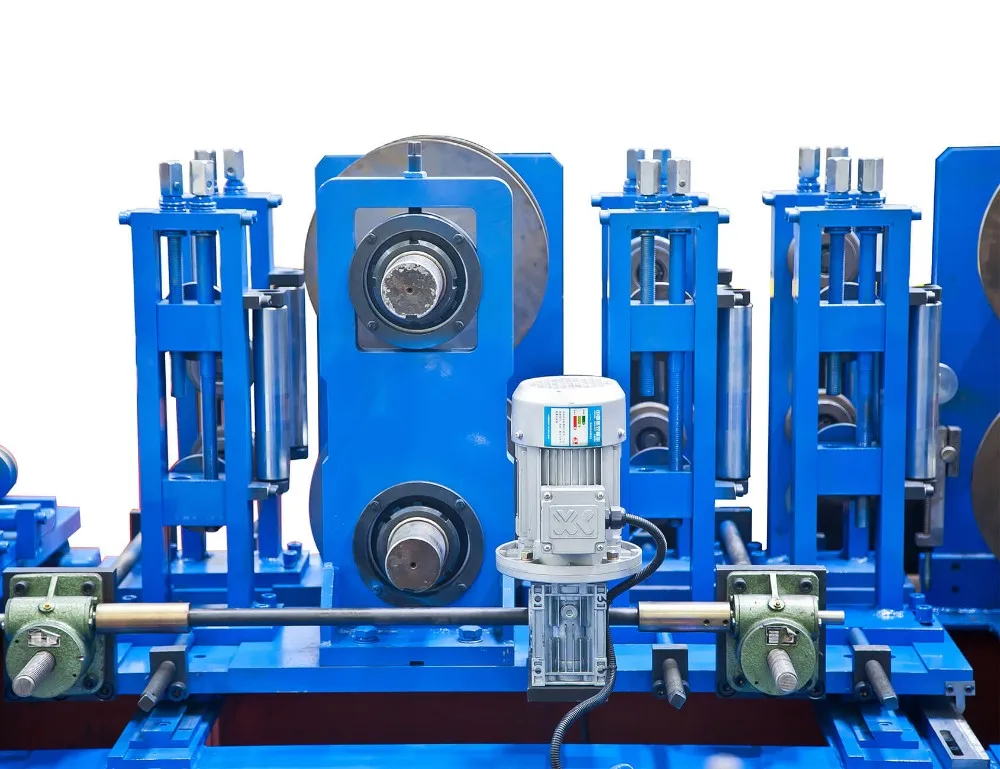

Main Roll forming system
Roller Station
15 Steps
Roller material
Cr12
Forming Speed
0-35m/min(Non-Stop)
Shaft material
40Cr

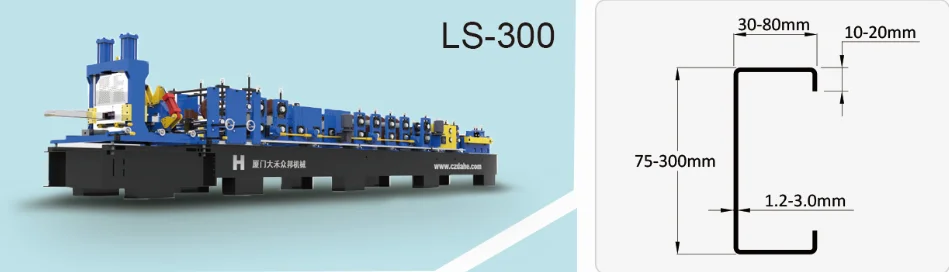

Purlin   width/height/lip/thickness
width:75-300mm
height:30-80mm
lip:8-20mm
thickness:1-3mm
Meterial
Q195, Q235   hot coil, galvanized coil
Decoiler (Automatic)
Bearing
5T
Others
Spindle double holding brake/
Self-driven feeding
Servo/Hydraulic System
Hydraulic System Working Pressure
16Mpa
Main pump motor power
7.5KW380V             1Set
Voltage Standard
380V/3 Phases/50HZ
Control System
PLC System
Panasonic, Japan
Length Controller
Omron, Japan
Support table
Length
6M(Fixed Storage Table)

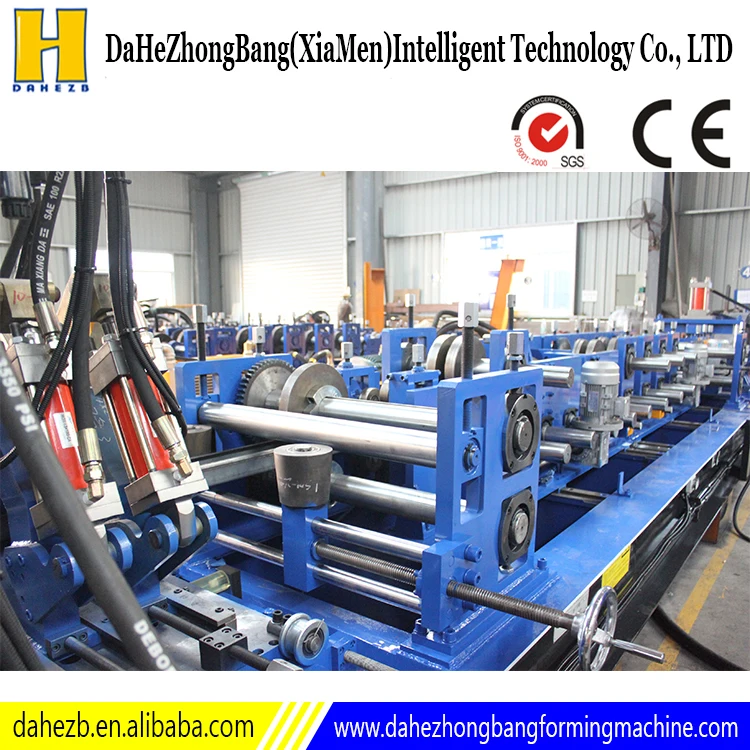

Our company

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.

Our customer show
Packing&Delivery
Our service

Technical support:

Any problems resulting from the process of your production can be easily handled by our sales service hotline and we have a perfect sales service process to ensure that your problem is solved in the shortest time..

Our long-term commitment to researching and manufacturing of CZ type steel equipment, the long-term practical experience and customer production experiences are imposed on statistics and analysis, and in our technology website for customers to share.

Focus, sharing is the attitude of our service!
