Fast Changed Size C Shape Cold Steel Roll Forming Machine C Shaped Steel Roll Former The Best Quality

FOB Reference Price:Get Latest Price
$29,500.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MC 50-250
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
10-13M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
11KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China (Mainland)
Brand Name:
DaHe, DAHE
Voltage:
380V/3 phases/50HZ
Dimension(L*W*H):
6.98m*1.47m*1.80m
Weight:
5.3T
Product name:
CZ Purlin Roll Forming Machine
Roller material:
Cr12
Shaft material:
40Cr
Color:
Customers' Requires
Punching:
Hydraulic Pre-punching
Cutter material:
Cr12Mov
Name:
Purlin Roll Formg Machine
Control system:
PLC(imported Brand)
Thickness:
1mm-3mm
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN
Picture Example:
package-img
package-img
Product Description


 MC50-250 Roll Forming Machine


Abstract:
MC50-250 C purlin roll former is suitable for cabinet house and prefabricated house. It features light weight, small and stable running.


Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment.


Advantages:


1. 12 years' manufacturing experience in C/Z purlin roll former

2. Competitive price and good quality

3. One year free warranty

4. Fast response of after sale service

5. Auto web size is changing from 50mm to 250mm in 2 minutes

6. Auto C purlin roll form machine can be customized by clients' requirements.

7. Easy operate and easy to maintain

8. Self-developed of post cutter, one blade to cutter all size of final products


Specifications:

1.C Purline Hydraulic Roll Forming Machine

2.High efficient and safe

3.Beautiful appearence and best quality


Flow chart:



De-coiler – leveling device – roll forming parts – post punching and post cutting – stack.

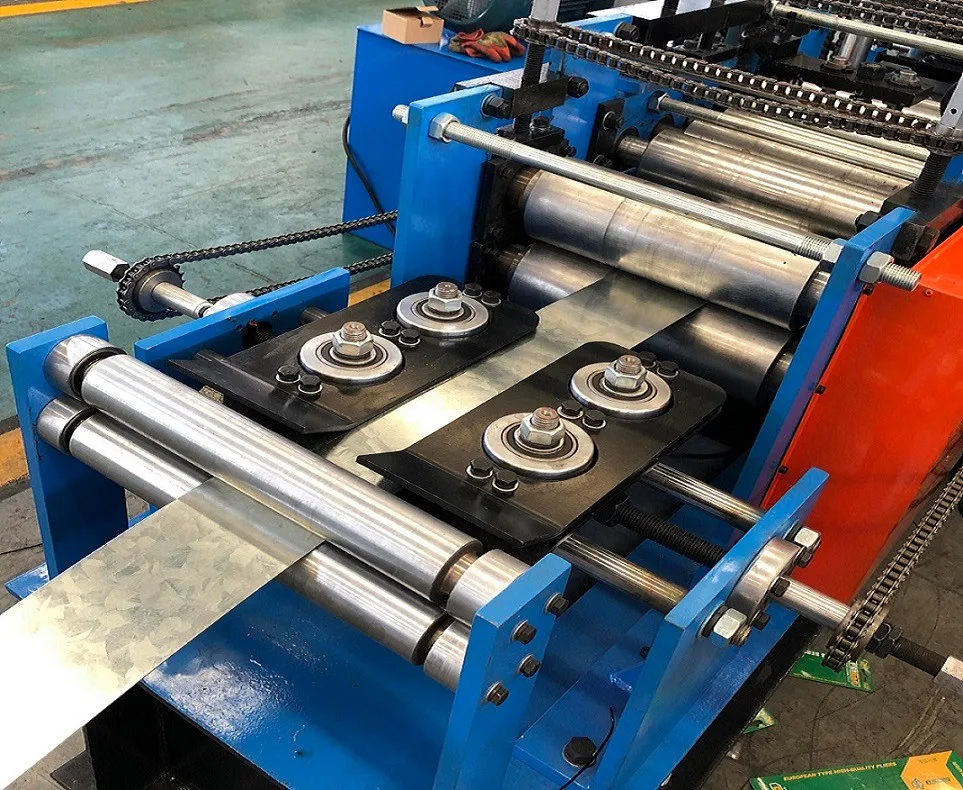

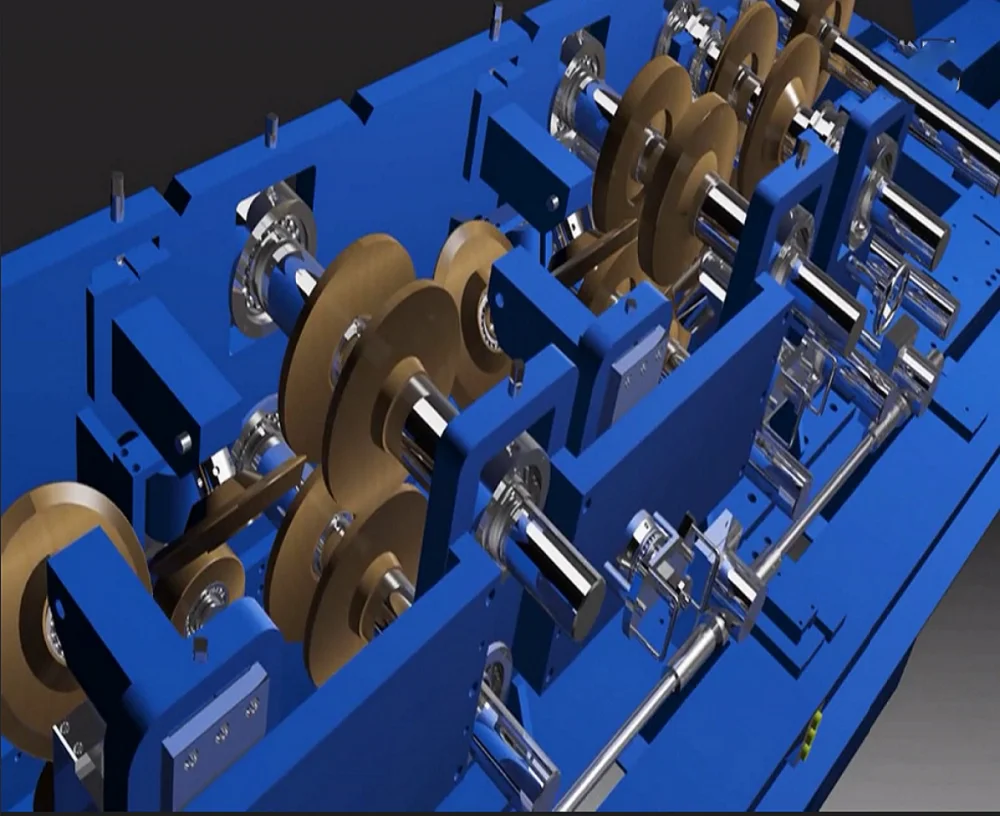

21Main Roll forming system
Roller Station
21 Steps
Roller material
Cr12
Forming Speed
0-35m/min(Non-Stop)
Shaft material
40Cr
Purlin   width/height/lip/thickness
width:50-250mm
height:25-60mm
lip:8-20mm
thickness:1-3mm
Meterial
Q195, Q235,Q345B
Diameter of main shaft
∮70mm
Decoiler trive
5hp/leveler-3hp
Decoiler (Automatic)
Bearing
5T
Others
Spindle double holding brake/
Self-driven feeding
Servo/Hydraulic System
Hydraulic System Working Pressure
16Mpa
Main pump motor power
7.5KW380V             1Set
Voltage Standard
380V/3 Phases/50HZ
Control System
PLC System
Panasonic, Japan
Length Controller
Omron, Japan
Support table
Length
6M(Fixed Storage Table)



Our company

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
