Glazed Steel Tile Forming Machine Corrugated Steel Roof Machine Roof Tile Making Machine

FOB Reference Price:Get Latest Price
$30,000.00 - $45,000.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
5.5KW
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
35M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Condition:
New
Tile Type:
Glazed
Use:
Roof
Place of Origin:
Fujian, China (Mainland)
Brand Name:
DAHE
Voltage:
220V/3Ph/60HZ
Dimension(L*W*H):
8.0m*1.5m*1.0m
Weight:
5T, 5t
Name:
GLAZED TILE ROLL FORMING MACHINE
Brand name:
DAHE
Control system:
PLC(imported Brand)
Color:
Customers Requirement
Thickness:
0.4-0.6mm
Usage:
Construction
Application:
Roof Panel
Roller material:
NO.45 Forged Steel
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Packed
Port
XIAMEN
Picture Example:
package-img
package-img
Product Description

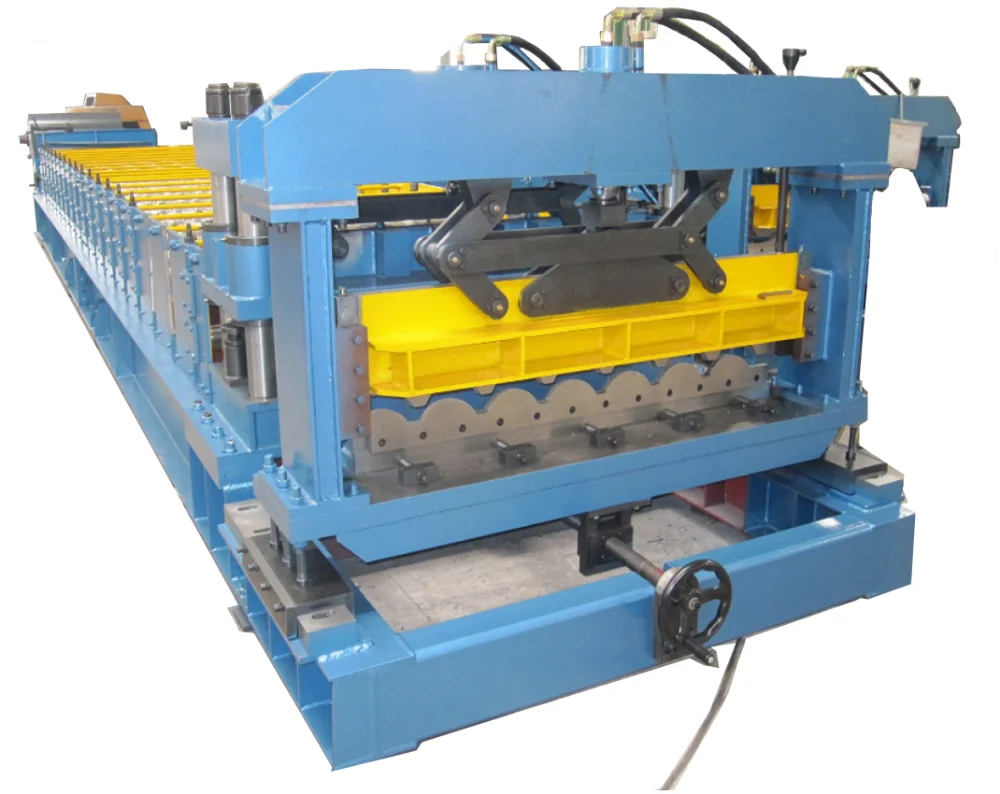

Glazed Tile Roll Forming Machine


Abstract:
Tile forming machine consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table.


Advantages:

1.Certificate: ISO 9001, CE,

2. Lifetime services

3. Introduced Mitsubishi PLC with touch screen to machine controll system.

4. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.

5. One worker operation (minimum)

6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter

7. Product cut-to-length.

8.Technician overseas installing and training available



Product Features:


1.Precise forming.


2. High-solid forming stand guarantees the good and uniform quality of final products


3. The operation automatically minimizes the tolerance of cutting length.

4. A stylish and attractive design,giving the apperance of a traditional roof tile.

5. Resistant to frost,heat,hail and gales : 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.

6. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.



Product specifications

Item
Specification
Material
Type
Pre-painted steel coil&galvanized coils
Thickness
0.4--0.6mm
Yield strength
235Mpa
Roller material
No.45 forged steel
Forming speed
About 10m/min
Output speed
0--3m/min
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutter material
Cr12 mould steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi touch screen
Main motor
5.5KW
Hydraulic station motor
5.5KW


Machine Components:



Our company&factory

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
