Best Selling Light Gauge Steel Stud And Track Keel Roll Forming Machine

FOB Reference Price:Get Latest Price
$99,000.00 - $125,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LG
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
35M/min
Certification:
ISO CE SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
22KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China
Brand Name:
DAHE, DAHE
Voltage:
380V
Dimension(L*W*H):
5.4m*0.98m*1.5m
Weight:
3500KGS, 3.5T
Product name:
Purlin Roll Forming Machine
Control system:
PLC(imported Brand)
Color:
Blue
Shaft material:
40Cr Diameter 80mm
Roller material:
GCr15
Usage:
Villa
Cutting blade material:
Cr12Mov Mold Steel
Punching:
Hydraulic Pre-punching
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN
Picture Example:
package-img
Video Description
Product Description

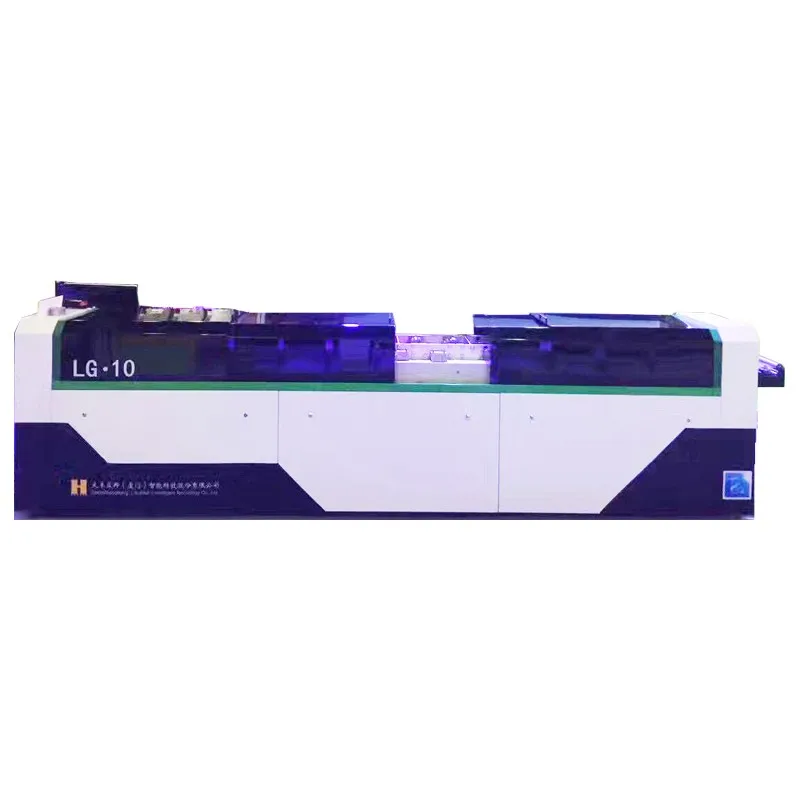

Light Gauge Steel Stud And Track Roll Forming Machine of C channel machine


LG series products launched by our company is an intelligent light steel villa building keel device, which can be independently developed and produced by dahe zhongbang intelligent technology. It can realize CNC machining of various parts such as walls, floors and even stairs. The operation procedure can directly import design data or directly input required parameters. All you need to do for model changes is enter the changed canonical size on the console, and then click change type. The entire device then moves to the desired location completely automatically, without human intervention. LG features high flexibility and intelligent production. Under the background of the new era, light steel structure building in the high-rise, heavy and light combination of various application fields is developing rapidly, highly flexible intelligent light steel processing equipment is your choice in the future.




Main Device
   Device Configuration
weight(kg)

Machine

5000×1100×1300(mm)
punching configuration
pre-punching
3000

Decoiler(Automatic)

1400×1150×1280(mm)
bearing
3T
770
Tension mode
Hydraulic
Spindle double holding brake
Self-driven feeding
Driving System
Servo motor

Support table

4000×1120×1084(mm)
support length
6M
200
support method
Fixed
Storage table
Purlin specifications
Width is 89/140/75/63  mm
Height is 41  mm
Lip in Any size within 7-12  mm
Thickness in Any size within 0.75-1.2 mm
Main accessories origin
PLC (panasonic),  Lengh encoder (Omron)
Servo (CTB),  Relay (Schneider)


Machine components

The design system includes the following software modules:

VERTEX BD Pro (VXB-114): The standard package contains: – Architectural Design Full architectural drawings, 3D browser with furniture & accessories.
Tools for creating presentable models (e.g. Fascia, Soffits, Window & Door Trims, Guttering...) – 3D Modelling and 2D Drafting – DWG, DXF, 3DS, IGES and SAT -interfaces – Archiving tools – OpenGL-rendering – Material database – Wall, Floor and Roof panels and roof trusses.Automatic panel drawings/Automatic truss structure drawings/Automatic joist & rafter layout drawings – Bill of materials, Cutting lists – First year support and maintenance.

The   Decoiler


De-coiler Type: Auto Hydraulic de-coiler

Weight capacity: 3.0T

Punching


All punching dies are made from Cr12Mov.

Holes parameter is able to set by computer; Hole Type can be customized.

Rolling Forming System


Main motor type: servo motor
Speed of forming: 48m/min
Roller: 12 groups of rollers.
Shaft & Frame: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
The frame is designed as strong as required to bear the whole rollers and shafts.
Material of main shaft : 40Cr.
Machine frame Material of frame: A3# steel

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Hydraulic Cutting: Cutting material: Cr12MoV


Online printer: Online inkjet printing system. Marks and Item Number are available to be printed on the flange side for easy assembling pieces to pieces.

Out-let Table: 4 meters Product support frame
C stud to the stack platform.

Safety Guard: Safety Guard covers the whole machine to ensure worker's safe.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Our company&factory
Our Customers
Contact us

More than 10 spare parts inventory, to help you in the shortest time to the most reasonable price received needs accessories. Whether you are within the warranty period and the warranty period, we are always providing support for your production.


Maintenance and support: In your device before the factory sales service department to establish the archives service for you, every service response time, speed and quality are truthful to record and track, constantly upgrading equipment experience to optimize the production. Is the purchase of equipment for customers, if models have upgrade mate. You can also choose to upgrade service, only a small number of investment you can make your brand new. We believe that only the specificity, focus on the professional technology to achieve the commitment to customers.
