New designed light gauge steel frame roll former multi profile stud and track roll forming machine price for roof truss

FOB Reference Price:Get Latest Price
$115,000.00 - $135,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MF
Power(W):
22KW
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Type:
Tile Forming Machine
Production Capacity:
35M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Condition:
New
Tile Type:
Steel
Use:
Floor
Place of Origin:
Fujian, China
Brand Name:
DAHE
Voltage:
380V
Dimension(L*W*H):
5.9m*1.46m*1.76m
Weight:
13.6T
Name:
MF Gauge Steel Framing Machine
Control system:
PLC(imported Brand)
Material:
Cr12
Color:
Customers Requirement
Usage:
Steel Construction
Thickness:
0.8-2.5mm
PLC:
Panasonic Brand
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Nude Packed
Port
XIAMEN
Picture Example:
package-img
package-img
Video Description
Product Description

 light gauge steel frame roll forming machine price


Abstract:

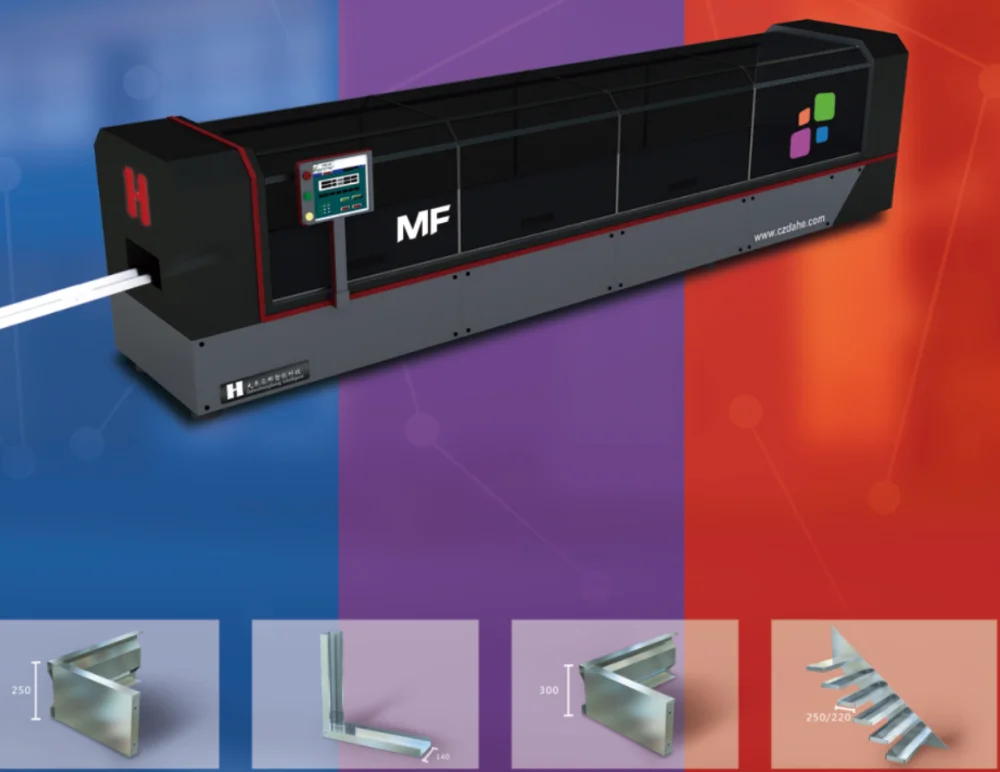

MF series is a kind of intelligent light steel villa building keel device, which can be independently developed and produced by dahe zhongbang intelligent technology. It can realize CNC machining of various parts such as walls, floors and even stairs. The operation procedure can directly import design data or directly input required parameters. All you need to do for model changes is enter the changed canonical size on the console, and then click change type. The entire device then moves to the desired location completely automatically, without human intervention. High flexibility and intelligent production is a major feature of MF. Under the background of the new era, light steel structure building in the high-rise, heavy and light combination of various application fields is developing rapidly, highly flexible intelligent light steel processing equipment is your choice in the future.Compact and reasonable machine layout, high speed, high precision, high rigidity to provide users with high efficiency, high reliability of C/U steel forming equipment. Molding machine can be replaced within the scope of specifications, customers only need to request specifications, we will design and provide the corresponding blade tools.


Flow chart

Hydraulic Decoiler→ Feed And Leveling Device→ Hydraulic punching→ Roll Forming System→ Hydraulic Cutting→ Product Support Frame



Plate type specifications and punching that can be produced


U/C  type

Standard C type specification
No.
L
B
C
A
T
1
89
32
16
8-12
0.8-1.2
2
89
41
20.5
8-15
0.8-1.6
3
101
41
20.5
8-15
0.8-1.6
4
151
41
20.5
8-15
0.8-1.6
Standard U type specification
No.
L
B
C
T
1
91
31
16
0.8-1.2
2
91
40
20.5
0.8-1.6
3
103
40
20.5
0.8-1.6
4
153
40
20.5
0.8-1.6



Machine Components:
1.Hydraulic Decoiler:

Tightening of coil: By Hydraulic

Weight capacity of decoiler : 4.0T

2. Feeding and Leveling Device

It used for making the material flat before feeding into the roll forming machine

11 rollers (five upper and six lower)

3.Hydraulic Punching

PLC control punching system.

Punching Type: Hydraulic Punching

4.Rolling Forming System

Main motor type: Servo motor

Drive by double chains

18 group's rollers

5.Hydraulic Cutting

Cutting type: Hydraulic cutting

6.Online Printer

Integrated ink jet (single sprinkler head, fixed side waist and high spray)

7.Safety Covers Guard

8.Industry computer control panel

9.Product support frame

10.PLC Control System




Our company&factory

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
