Galvanized C Purlin Roll Forming Machine For Making c shape purlin roll former prices

FOB Reference Price:Get Latest Price
$29,500.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MC 50-250
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
10-13M/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
11KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China
Brand Name:
DaHe, DAHE
Voltage:
380V/3 phases/50HZ
Dimension(L*W*H):
6.98m*1.47m*1.80m
Weight:
5.3T
Product name:
CZ Purlin Roll Forming Machine
Roller material:
Cr12
Shaft material:
40Cr
Color:
Customers' Requires
Punching:
Hydraulic Pre-punching
Cutter material:
Cr12Mov
Name:
Purlin Roll Formg Machine
Control system:
PLC(imported Brand)
Thickness:
1mm-3mm
Product Certification Verified
CE Certified.
Valid from 2017-03-29 until 2022-03-28
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN
Picture Example:
package-img
package-img
Product Description

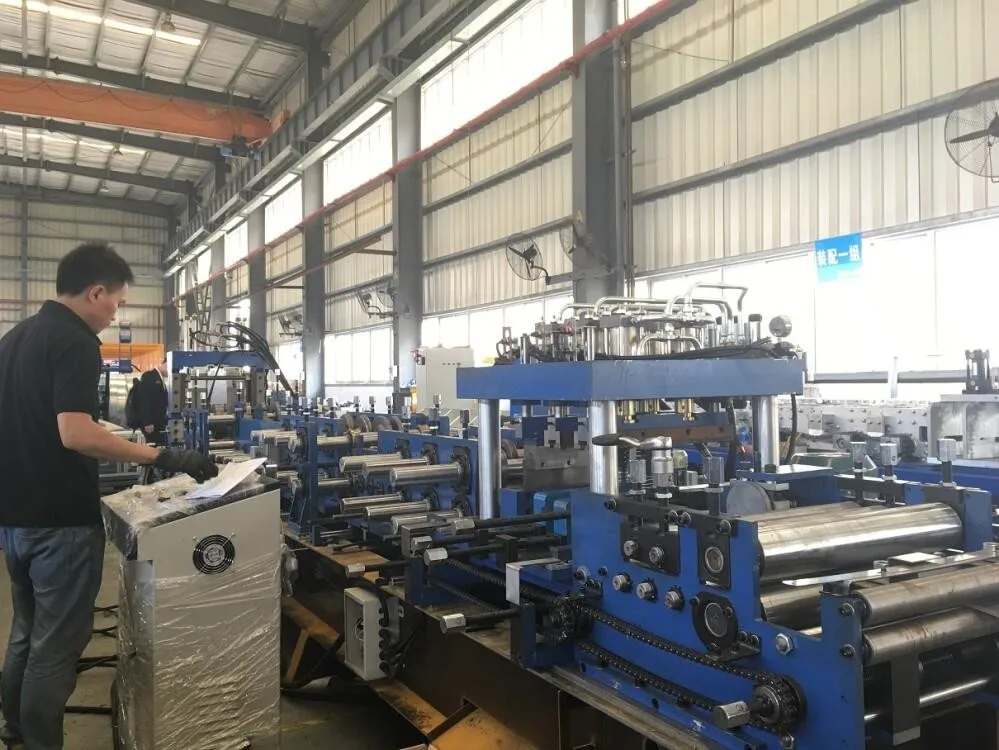

 C Purlin Roll Forming Machine


Abstract:
MC50-250 C purlin roll former is suitable for cabinet house and prefabricated house. It features light weight, small and stable running.


The core technology of Dahe zhongbang intelligent technology is to make the building realize factory production. The original CAD drawings can be produced in 100% in the factory according to the steel structure part of our CAM system. Our blu-ray system is completely domestic, with low price, short delivery time and high cost performance.


We found that although the performance of the non-pole equipment is superior, but using the traditional shear method, it may be difficult to give play to the superior characteristics of the non-pole equipment arbitrary switching, so we developed the non-pole cutting tool. If the CZ non-pole equipment is equipped with the old flat plate shear, it will appear running deviation, punching displacement, swelling and other defects. If the traditional cutting tool is used for cutting, in order to adapt to different specifications, countless spare blades are needed, which takes up the production site and takes a lot of time to change the knife, not to give play to the advantages of non-polar type change. Non-polar cutting tool system, no need to change the tool, just rotate the adjusting rod, a few minutes can be the accuracy of the unit millimeter, any change its width and height, you can shear C type can also shear Z type, give full play to the advantages of non-polar, is the collocation of CZ non-polar conversion equipment. Every day we focus on improving the quality of our equipment. For every design and manufacturing detail, we will give strict requirements and testing, we turn the technology into reality. Dahe zhongbang products can meet the different needs of customers, including high-end models suitable for high wall panel and large output, and standard models suitable for middle end customers. At the same time, we have developed economic models for entry-level customers.



Specifications:

1.C Purline Hydraulic Roll Forming Machine

2.High efficient and safe

3.Beautiful appearence and best quality


Flow chart:



De-coiler – leveling device – roll forming parts – post punching and post cutting – stack.

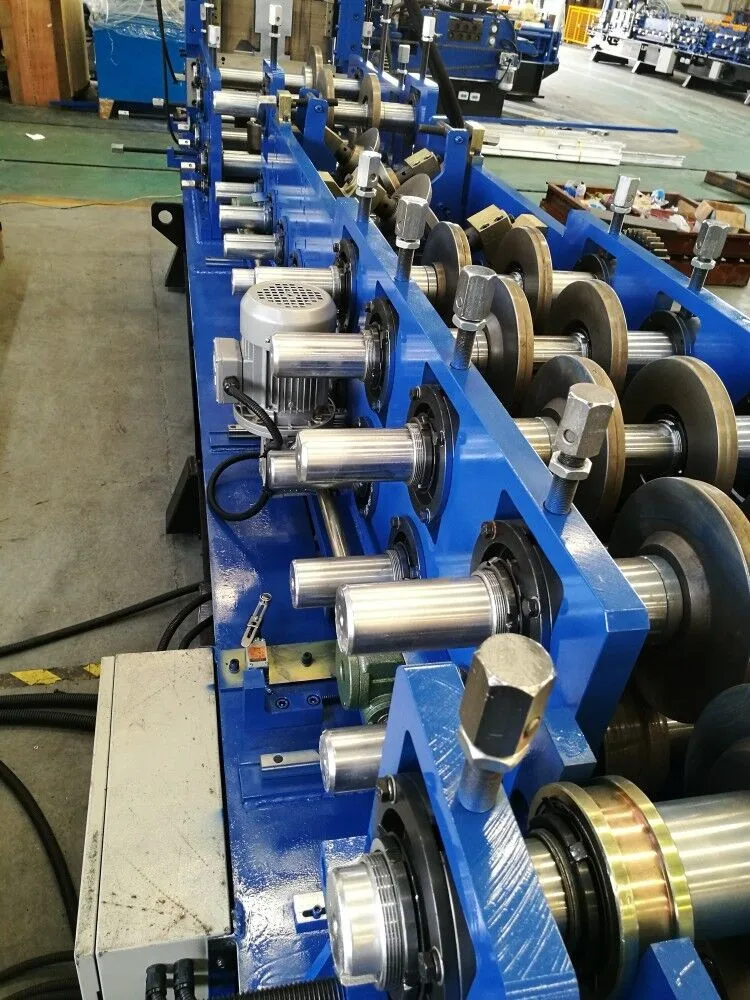

21Main Roll forming system
Roller Station
21 Steps
Roller material
Cr12
Forming Speed
0-35m/min(Non-Stop)
Shaft material
40Cr
Purlin   width/height/lip/thickness
width:50-250mm
height:25-60mm
lip:8-20mm
thickness:1-3mm
Meterial
Q195, Q235,Q345B
Diameter of main shaft
∮70mm
Decoiler trive
5hp/leveler-3hp
Decoiler (Automatic)
Bearing
5T
Others
Spindle double holding brake/
Self-driven feeding
Servo/Hydraulic System
Hydraulic System Working Pressure
16Mpa
Main pump motor power
7.5KW380V             1Set
Voltage Standard
380V/3 Phases/50HZ
Control System
PLC System
Panasonic, Japan
Length Controller
Omron, Japan
Support table
Length
6M(Fixed Storage Table)



Our company

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
