MF Gauge Steel Framing Machine
Cr12 Steel Quenched
Product Certification Verified
Valid from 2017-03-29 until 2022-03-28
Packaging & Delivery
1 - 1
To be negotiated
light gauge steel frame roll forming machine MF300
MF series is a kind of intelligent light steel villa building keel device, which can be independently developed and produced by dahe zhongbang intelligent technology. It can realize CNC machining of various parts such as walls, floors and even stairs. The operation procedure can directly import design data or directly input required parameters. All you need to do for model changes is enter the changed canonical size on the console, and then click change type. The entire device then moves to the desired location completely automatically, without human intervention. High flexibility and intelligent production is a major feature of MF. Under the background of the new era, light steel structure building in the high-rise, heavy and light combination of various application fields is developing rapidly, highly flexible intelligent light steel processing equipment is your choice in the future.Compact and reasonable machine layout, high speed, high precision, high rigidity to provide users with high efficiency, high reliability of C/U steel forming equipment. Molding machine can be replaced within the scope of specifications, customers only need to request specifications, we will design and provide the corresponding blade tools.

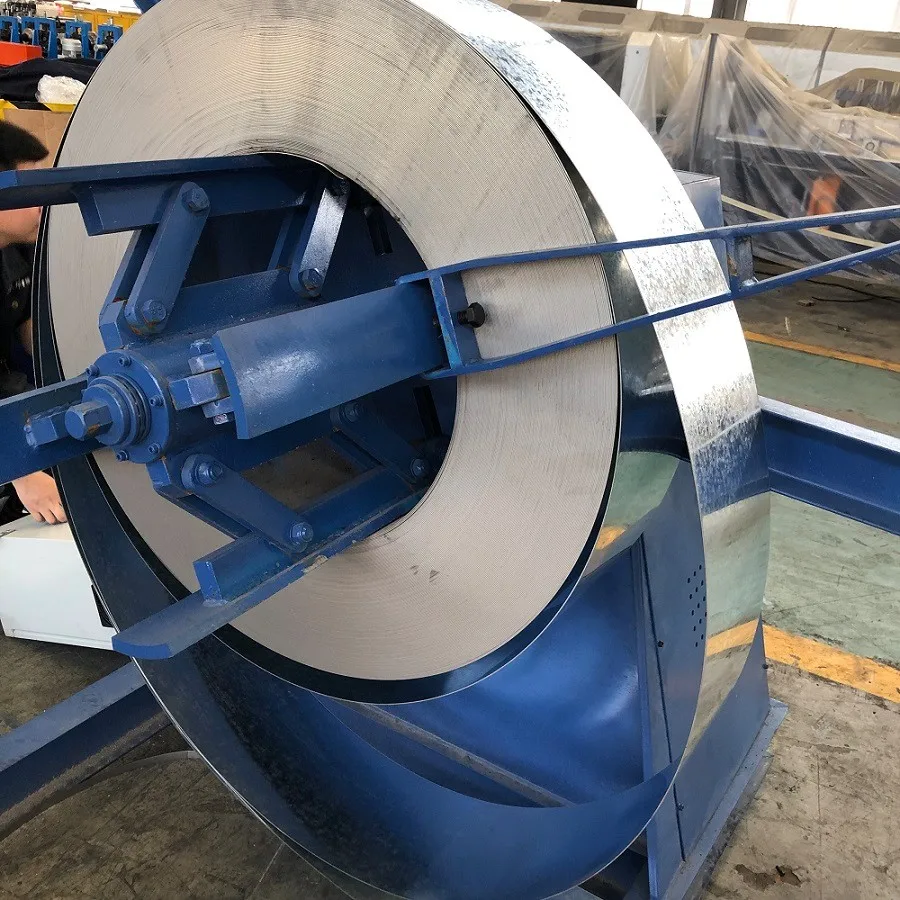

Decoiler-- Feeding and leveling--Pre-punching -- Rolling forming device-- Hydraulic cutting system-Production support frame-PLC system

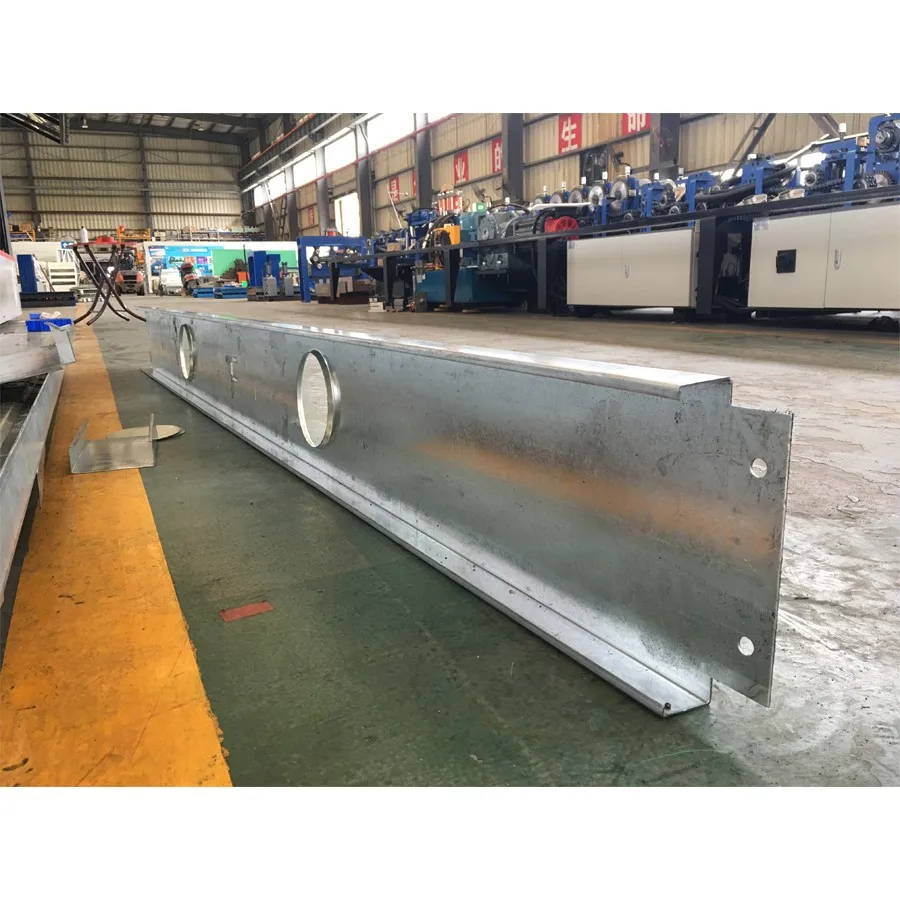

Width in Any size within 140-300,
Height is 50,
Lip in Any size within 10-20.
Thickness in Any size within 1.0-2.5mm
1) Name: CU full-automatic gauge steel machine
2) Configuration:decoiler, feeding and leveling, punching, cutting system , rolling forming device and production support stable.
PLC ( Panasonic),travel switch(Autonics)
3) Driver Type:three-phase asynchronous motor.
4) Working speed:12-18m/min (depend on the punching hole number)
5) Suitable material:Q235 and G550
Steel frame&purlin machine
After-sales service provided:
Engineers available to service
Cutting blade material:
Purlin roll forming machine
Construction Building Material
* MF steel machine qualified electrical inspection and marking electrical switch logo
* The certificate of MF steel machine
* Qualified hydraulic personnel to test and mark the hydraulic switch logo
* MF steel machine setting table
* Quality check list of decoiler
* A list of the parts of the kit
* Electrical field installation checklist
* Electrical circuit diagram
* Hydraulic circuit diagram
* Electrical circuit diagram of the decoiler
* Spare parts description
Disclaimer: Due to the specifications of follow-up product development are different, the change of manual topic will not notice.
Size of PLC Control Board(700mm(L)x1000mm(H)x300mm(W) Encoder : OMRON
Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.
