2019 China high precision c u light gauge steel roll forming machine for construction

FOB Reference Price:Get Latest Price
$115,000.00 - $135,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MF200
Max. Working Width:
220mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Cutting System (Min. Order: 1 Sets)
Hydraulic Punching (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
35M/min
Certification:
ISO CE SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Condition:
New
Work Pressure:
18.5KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China
Brand Name:
DAHE
Voltage:
380V
Dimension(L*W*H):
10.2*2.0*1.96
Weight:
13.5T
Roller material:
Cr12
Cutting blade material:
Cr12Mov Mold Steel
Control system:
PLC
Weight Capacity:
5T
Product name:
Purlin Roll Forming Machine
Name:
Purlin Quickly Change Cold Roll Forming Machine
Decoiler:
Max Load 6Tons
Quality:
High Grade
Thickness:
1mm-3mm
Color:
blue
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN PORT, CHINA
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

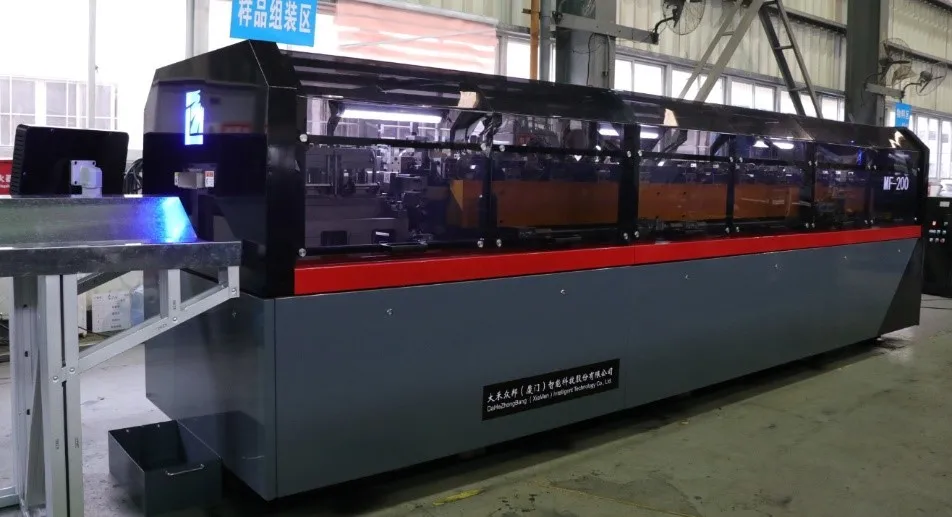

C U stud&track light frame forming machine MF200

The advantages of CZ Purlin Interchangeable Roll Forming Machine LS of our company as follows:

1. Quick positioning &guiding;
2. High precision changing system;
3.CU exchange security lock;
4. Arbitrary angle adjustment components;

Specifications

1.C profile

                                                                     2.U profile


Flow Chart

Auto De-coiler→Leveling Device→Roll Forming System→Punching & Cutting Device →Run out table

Technical Compents

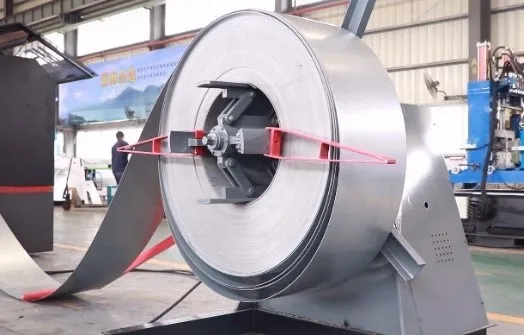

1)Decoiler

De-coiler Type:Hydraulicauto de-coiler

Weight capacity: Max 3.0T

2) Guiding

Guiding device is used to guide and fasten the raw material raw material into roll forming station steadily.

3) Rolling Forming System

Speed of forming: 35m/min

Roller stands : 15rolling stands.

4) Shaft & Frame

Shafts of rollers are tooled by grinding machine for two times to ensure the precisionof final product.

5) Bearing

NTN brand from Japan.

6)Machine Frame

The frame of machine are designed as square tube shape and thickness of frame is 30mm in order to make sure the machine is capable to bear all accessories of this machine.

7) Flare control rollers

Flare device is made of two group rollers with manual adjusting device.

8)Changing sizes: Full-automatic

Machine is able to change purlin size within 1 minutes.

9)Hydraulic Punching

All punching dies are made from Cr12. Driven by hydraulic station.Holes locations are able to set by PC panel.

Packing & Delivery
Our Service

1.More than 10 spare parts inventory, to help you in the shortest time to the most reasonable price received needs accessories. Whether you are within the warranty period and the warrantyperiod, we are always providing support for your production.

2.Maintenance and support:
In your device before the factory sales service department to establish the archives service for you, every service response time, speed and quality are truthful to record and track, constantlyupgrading equipment experience to optimize the production.
Is the purchase of equipment for customers, if models have upgrade mate. You can also choose to upgrade service, only a small number of investment you can make your brand new.
We believe that only the specificity, focus on the professional technology to achieve the commitment to customers.

3.Operator training:
"Management starts with training, training", and improving the training is the premise of achieving first-class production, we provide the following four ways in the long time when customers need to choose:
1) customers responding to commissioning personnel training (purchase offer);
2) the customer on-site invited training (need to choose);
3) customer on-site 7 days to accompany production (need to choose);
4) we on-site commissioning and production training (need to choose when);

4.Technical support:
Any problems resulting from the process of your production can be easily handled by our sales service hotline and we have a perfect sales service process to ensure that your problem is solved in the shortest time..
Our long-term commitment to researching and manufacturing of CZ type steel equipment, the long-term practical experience and customer production experiences are imposed on statistics and analysis, and in our technology website for customers to share.
Focus, sharing is the attitude of our service!

Our Company

Dahezhongbang (Xiamen) Intelligent Technology Co., Ltd.

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.

Our company has cooperated with Vertex ,and launched the immaculate Light gauge steel design and production line which combined the most advanced light gauge steel structure design system and purlin interchanging technology.

Our innovative research and development group, professional and effective production group, and efficient after-sales group continuously ensure creative technologies, satisfied quality and steady equipment. More than 12 years experiences in roll forming technology, Good responses from our long term application customers all over China and all over the world, and our unique advantage in the competitive market will also upgrade your enterprise's high and strong competitiveness.
