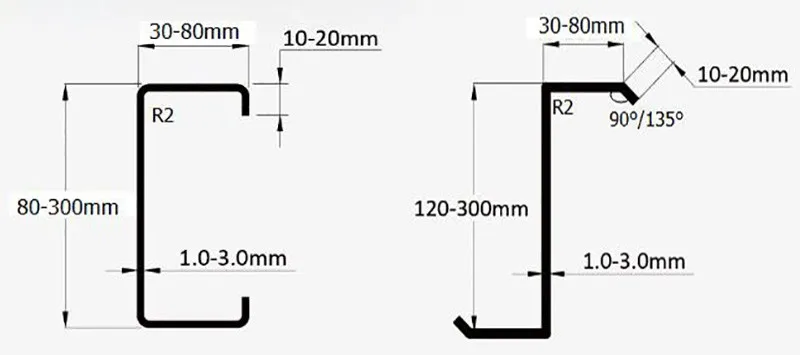

2019 China gold supplier c80-300mm z120-300mm stainless steel roll forming machine

FOB Reference Price:Get Latest Price
$45,000.00 - $48,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SX20
Max. Working Width:
300mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Cutting System (Min. Order: 1 Sets)
Hydraulic Punching (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Power(W):
35M/min
Certification:
ISO CE SGS
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Type:
Steel Frame & Purlin Machine
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Condition:
New
Work Pressure:
18.5KW
Production Capacity:
35M/min
Place of Origin:
Fujian, China (Mainland)
Brand Name:
DAHE
Voltage:
380V
Dimension(L*W*H):
9.98*1.8*2.02
Weight:
10.9T
Roller material:
Cr12
Cutting blade material:
Cr12Mov Mold Steel
Control system:
PLC
Weight Capacity:
6T
Product name:
Purlin Roll Forming Machine
Name:
Purlin Quickly Change Cold Roll Forming Machine
Decoiler:
Max Load 6Tons
Quality:
High Grade
Thickness:
1mm-3mm
Color:
blue
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Port
XIAMEN PORT,CHINA
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

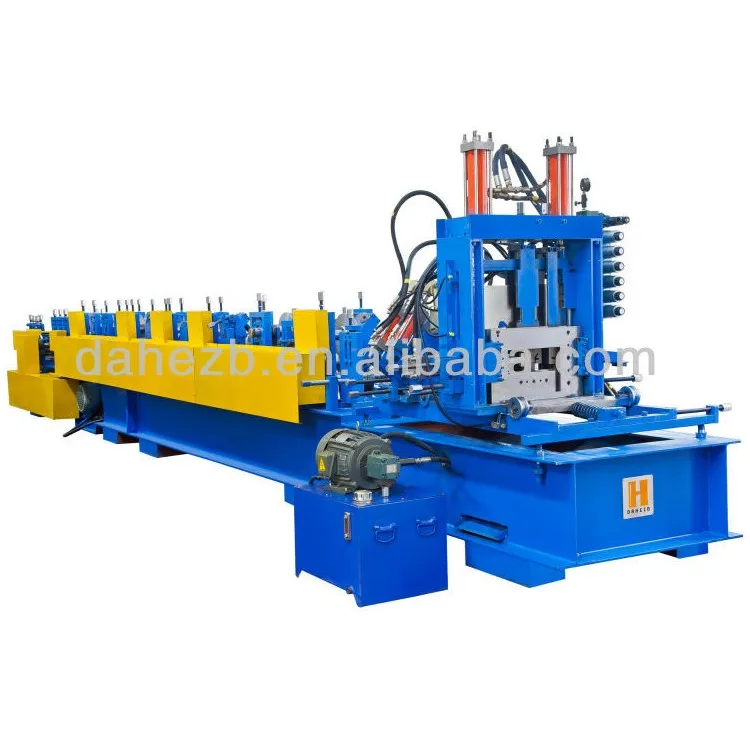

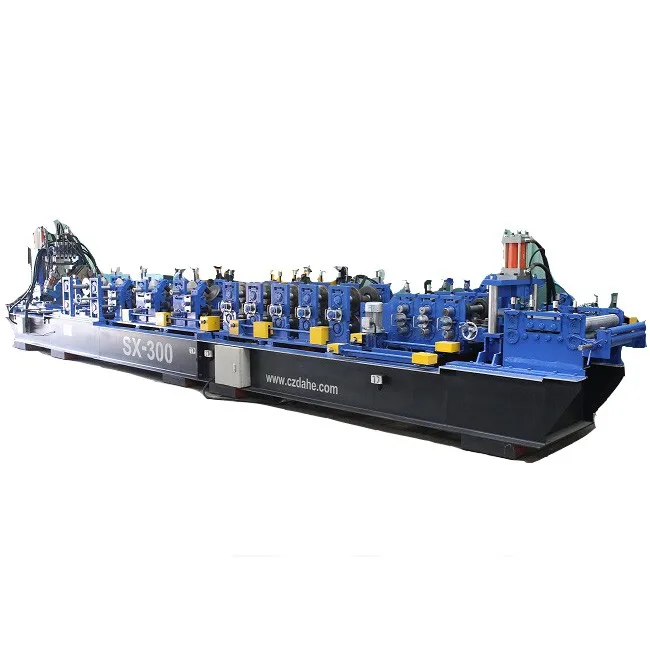

CZ Purlin Interchangeable Roll Forming Machine SX20

The advantages of CZ Purlin Interchangeable Roll Forming Machine SX20 of our company as follows:

1. Quick positioning &guiding;
2. High precision changing system;
3.CZ exchange security lock;
4. Arbitrary angle adjustment components;

Specifications

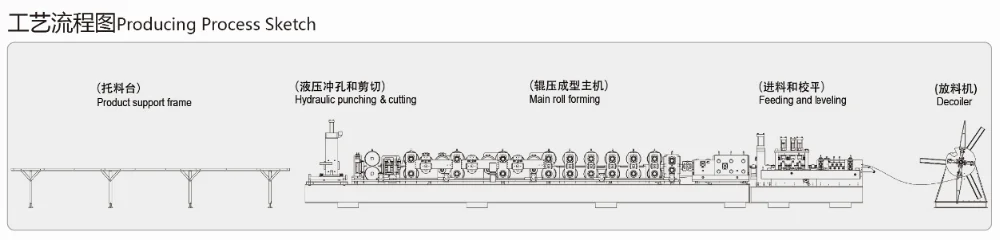

Flow Chart

De-coiler – Feeding and Leveling device – Pre-punching system- Pre- cutting system –Roll Forming System-– Post Cutting – Hydraulic station – PLC – Cutting Product Support

Technical Compents

1.De-coiler

 De-coiler Type: Manuel de-coiler
 Weight capacity: 5.0T
 Diameter of inner: 460-620mm
 Diameter of outer: 1400m

2.Feeding and Leveling Device

It used for making the material flat before feeding into the roll forming machine. use handler bar to operate the leveling up and down.

3.Hydraulic Pre-Punching

PLC control punching system.
Punching Type: Hydraulic Punching
Distance of the hole can be adjusted manually by handlebar (Transversal) ; Longitudinal position is to be adjusted by inputting parameters into the PLC.

4.Post-cutting system-main cutter when chose post-cutting system.

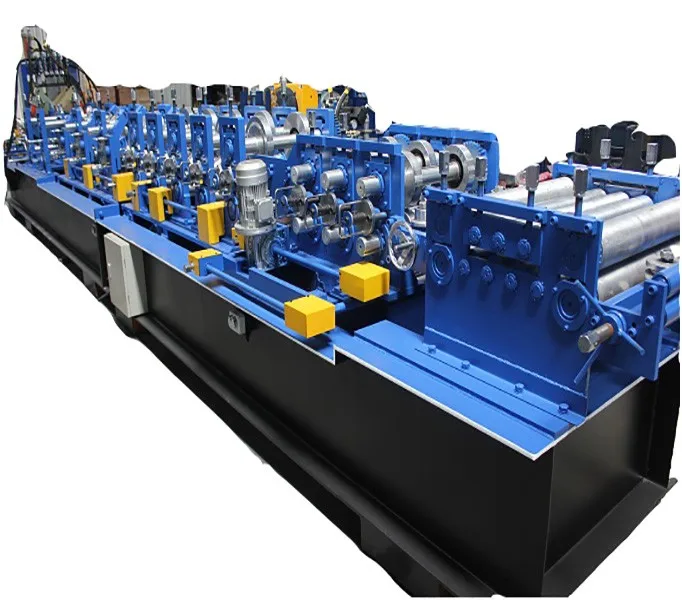

5.Rolling Forming System

Main motor type: 3 phase asynchronous motor
Driving Type: Chain
CZ Purlin Interchangeable Roll Forming Machine SX20
Speed of forming: 15-18m/min( 30m/min without punching holes)
Roller : 19groups rollers.
Material of main shaft : NO.45 steel
Changing sizes: Automatic, change sizes by press button.

Packing & Delivery
Our Service

1.More than 10 spare parts inventory, to help you in the shortest time to the most reasonable price received needs accessories. Whether you are within the warranty period and the warrantyperiod, we are always providing support for your production.

2.Maintenance and support:
In your device before the factory sales service department to establish the archives service for you, every service response time, speed and quality are truthful to record and track, constantlyupgrading equipment experience to optimize the production.
Is the purchase of equipment for customers, if models have upgrade mate. You can also choose to upgrade service, only a small number of investment you can make your brand new.
We believe that only the specificity, focus on the professional technology to achieve the commitment to customers.

3.Operator training:
"Management starts with training, training", and improving the training is the premise of achieving first-class production, we provide the following four ways in the long time when customers need to choose:
1) customers responding to commissioning personnel training (purchase offer);
2) the customer on-site invited training (need to choose);
3) customer on-site 7 days to accompany production (need to choose);
4) we on-site commissioning and production training (need to choose when);

4.Technical support:
Any problems resulting from the process of your production can be easily handled by our sales service hotline and we have a perfect sales service process to ensure that your problem is solved in the shortest time..
Our long-term commitment to researching and manufacturing of CZ type steel equipment, the long-term practical experience and customer production experiences are imposed on statistics and analysis, and in our technology website for customers to share.
Focus, sharing is the attitude of our service!

Our Company

Dahezhongbang (Xiamen) Intelligent Technology Co., Ltd.

Dahezhongbang(XiaMen)Intelligent Technology Co.,Ltd , located in the beautiful coastal city XIAMEN,is a high-tech enterprise and won several technology patents, like fast cutting system(size adjustable, not need to replace cutting mold) , purlin size fast changing system(choose any size in range),coaxial C/Z interchanging system(CZ integrated machine) and so on. For many years, the company has focused on the research and develop of new technologies of CZ purlin equipment. As a result, it has initiated the application of fast cutting system and coaxial C/Z interchanging system and promoted a trend of upgrading of the whole CZ processing area. The company has developed single product to a category and make customers enjoy the best choice and one-stop shopping, thus creating a new model for successful operation of independent brand in rolled steel industry.

Our company has cooperated with Vertex ,and launched the immaculate Light gauge steel design and production line which combined the most advanced light gauge steel structure design system and purlin interchanging technology.

Our innovative research and development group, professional and effective production group, and efficient after-sales group continuously ensure creative technologies, satisfied quality and steady equipment. More than 12 years experiences in roll forming technology, Good responses from our long term application customers all over China and all over the world, and our unique advantage in the competitive market will also upgrade your enterprise's high and strong competitiveness.
